Winter Arctic sea ice state variability (updates through to April 2026)#
Summary: In this notebook, we provide the fifth update to the original winter Arctic sea ice thickness notebooks with the addition of the 2025 to 2026 winter from the Version 4 monthly gridded winter Arctic sea ice thickness dataset IS2SITMOGR4 (based on new Release 007 ATL10 freeboards).
Author: Alek Petty
Version history: Version 1 (08/2026)
### Import notebook dependencies
# Regular Python library imports
import xarray as xr
import numpy as np
import holoviews as hv
import pandas as pd
import hvplot.pandas # noqa
# Helper functions for reading the data from the bucket and plotting
from utils.read_data_utils import read_IS2SITMOGR4, read_book_data
from utils.plotting_utils import static_winter_comparison_lineplot, staticArcticMaps, staticArcticMaps_2026, interactiveArcticMaps, compute_gridcell_winter_means, interactive_winter_comparison_lineplot # Plotting utils
# Plotting dependencies
#%config InlineBackend.figure_format = 'retina'
import matplotlib as mpl
# Sets figure size in the notebook
mpl.rcParams['figure.dpi'] = 200
# Remove warnings to improve display
import warnings
warnings.filterwarnings('ignore')
# Set some plotting parameters
mpl.rcParams.update({
"text.usetex": False, # Use LaTeX for rendering
"font.family": "sans-serif",
'mathtext.fontset': 'stixsans',
"lines.linewidth": 1.,
"font.size": 8,
#"lines.alpha": 0.8,
"axes.labelsize": 8,
"xtick.labelsize": 8,
"ytick.labelsize": 8,
"legend.fontsize": 8
})
mpl.rcParams['font.sans-serif'] = ['Arial']
Read in the Version 4 monthly gridded winter Arctic sea ice data#
There are now three ways to grab the data.
‘netcdf-local’: where the data is stored as netcdf files in a local directory (local_data_path). This is generally the fastest and best if you plan to do multiple executions. But you need to run Option #3 below to get the data first…
‘zarr-s3-v4’: grab the data through a Zarr store on S3. This is slower than the above but very convenient as you dont need to download anything! Should be much faster if running this on AWS (us-west-2). Note we point to the new Zarr store extending through April 2026.
‘netcdf-s3’: the slowest option, but it does download the files and open you up to the fast Option #1.
#%%time
#IS2SITMOGR4_v4_test = read_IS2SITMOGR4(data_type='netcdf-local', local_data_path='./data/IS2SITMOGR4/', version='V4')
#IS2SITMOGR4_v4_test
#%%time
#IS2SITMOGR4_v4_test = read_IS2SITMOGR4(data_type='netcdf-s3', version='V4')
#IS2SITMOGR4_v4_test
%%time
IS2SITMOGR4_v4 = read_IS2SITMOGR4(data_type='zarr-s3-v4', version='V4',
zarr_path='s3://icesat-2-sea-ice-us-west-2/IS2SITMOGR4_V4/zarr/IS2SITMOGR4_V4_201811-202604.zarr')
load zarr from S3 bucket
zarr_path: s3://icesat-2-sea-ice-us-west-2/IS2SITMOGR4_V4/zarr/IS2SITMOGR4_V4_201811-202604.zarr
CPU times: user 7.71 s, sys: 965 ms, total: 8.67 s
Wall time: 33.2 s
Winter mean maps, extended and focussing in on the new 2025-2026 winter data#
# Years over which to perform analysis (start year of that winter period)
years = [x for x in range(2018, 2025+1)]
freeboard_winter_means = compute_gridcell_winter_means(IS2SITMOGR4_v4.freeboard_int, years=years)
snow_depth_winter_means = compute_gridcell_winter_means(IS2SITMOGR4_v4.snow_depth_int, years=years)
thickness_winter_means = compute_gridcell_winter_means(IS2SITMOGR4_v4.ice_thickness_int, years=years)

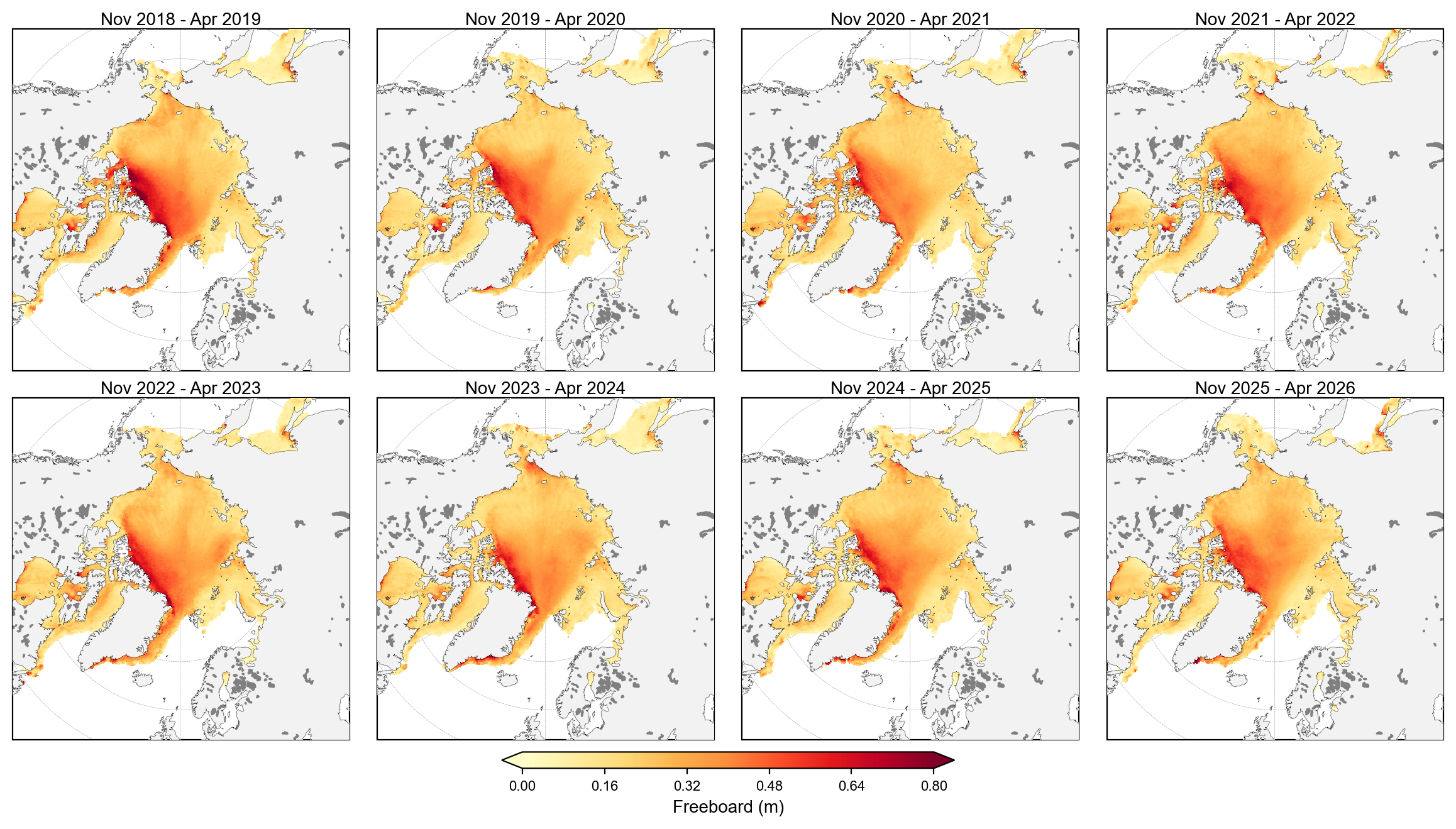

staticArcticMaps_2026(freeboard_winter_means, dates=freeboard_winter_means.time.values,title="", set_cbarlabel = "Freeboard (m)", cmap="YlOrRd", vmin=0, vmax=0.8, out_str='freeboard_winter_2018_2026')

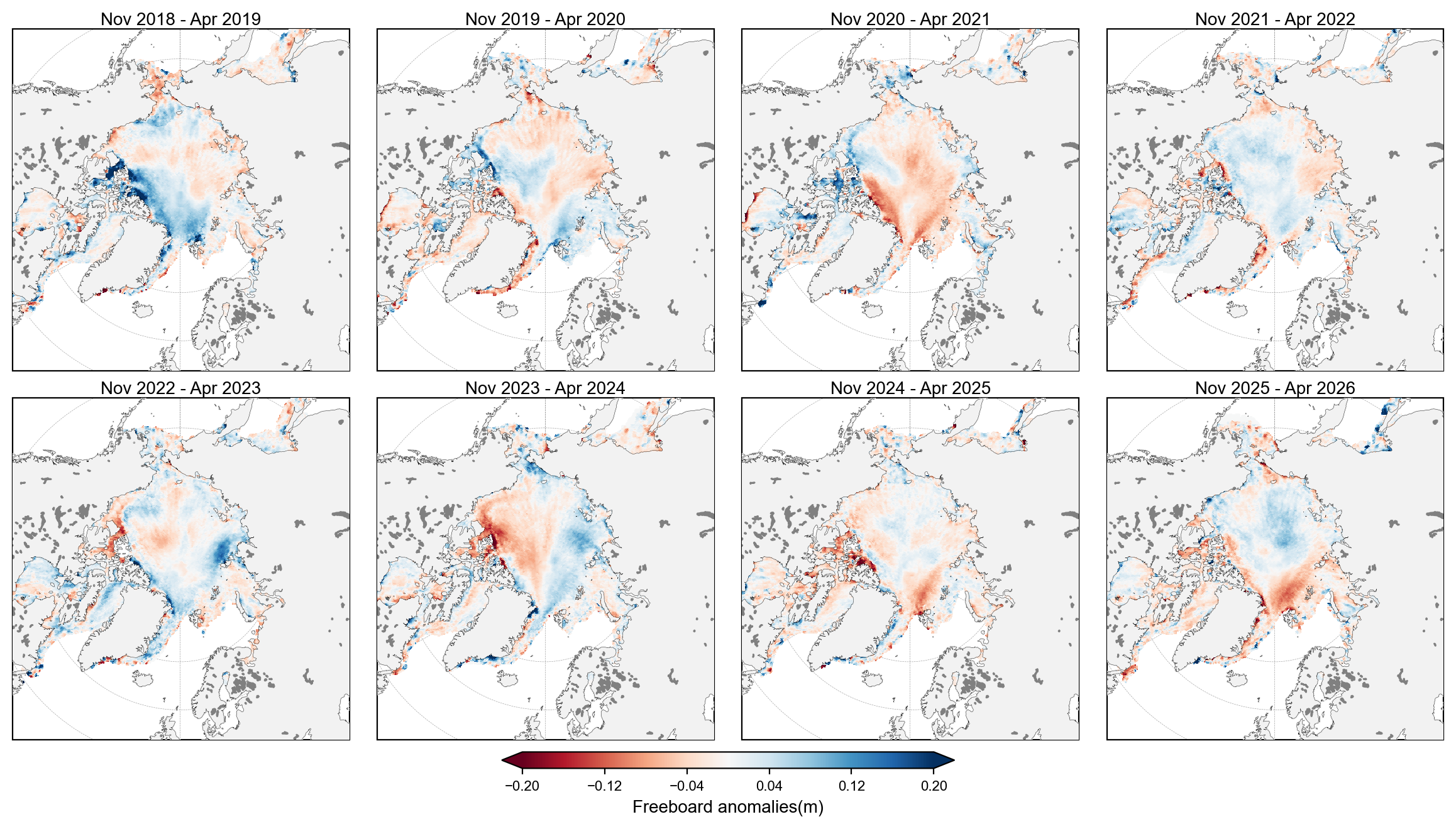

staticArcticMaps_2026(freeboard_winter_means-freeboard_winter_means.mean(axis=0), dates=freeboard_winter_means.time.values,title="", set_cbarlabel = "Freeboard anomalies(m)", cmap="RdBu", vmin=-0.2, vmax=0.2, out_str='freeboard_winter_2018_2026_anoms')

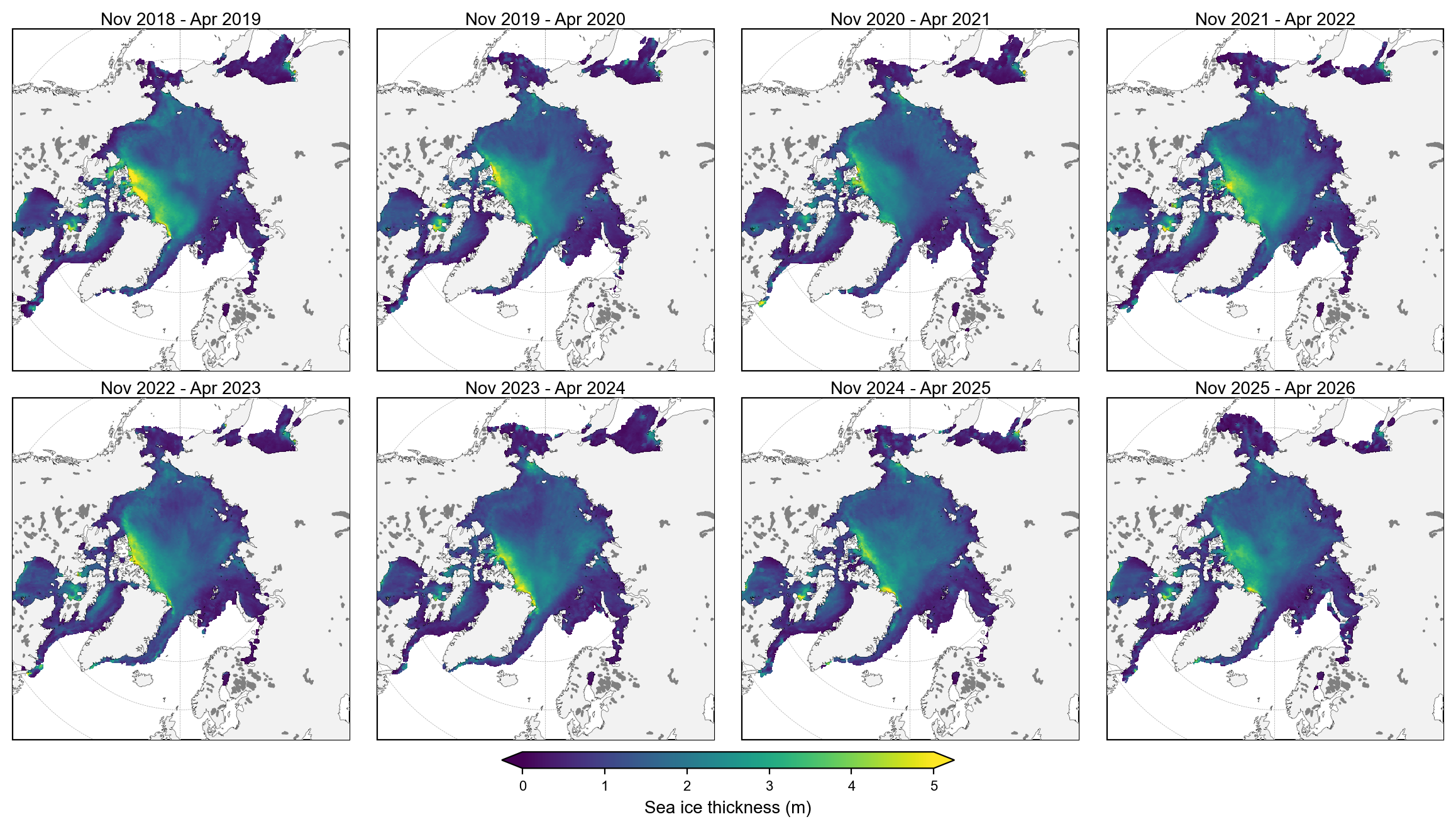

staticArcticMaps_2026(thickness_winter_means, dates=thickness_winter_means.time.values,title="", set_cbarlabel = "Sea ice thickness (m)", cmap="viridis", vmin=0, vmax=5, out_str='thickness_winter_2018_2026')

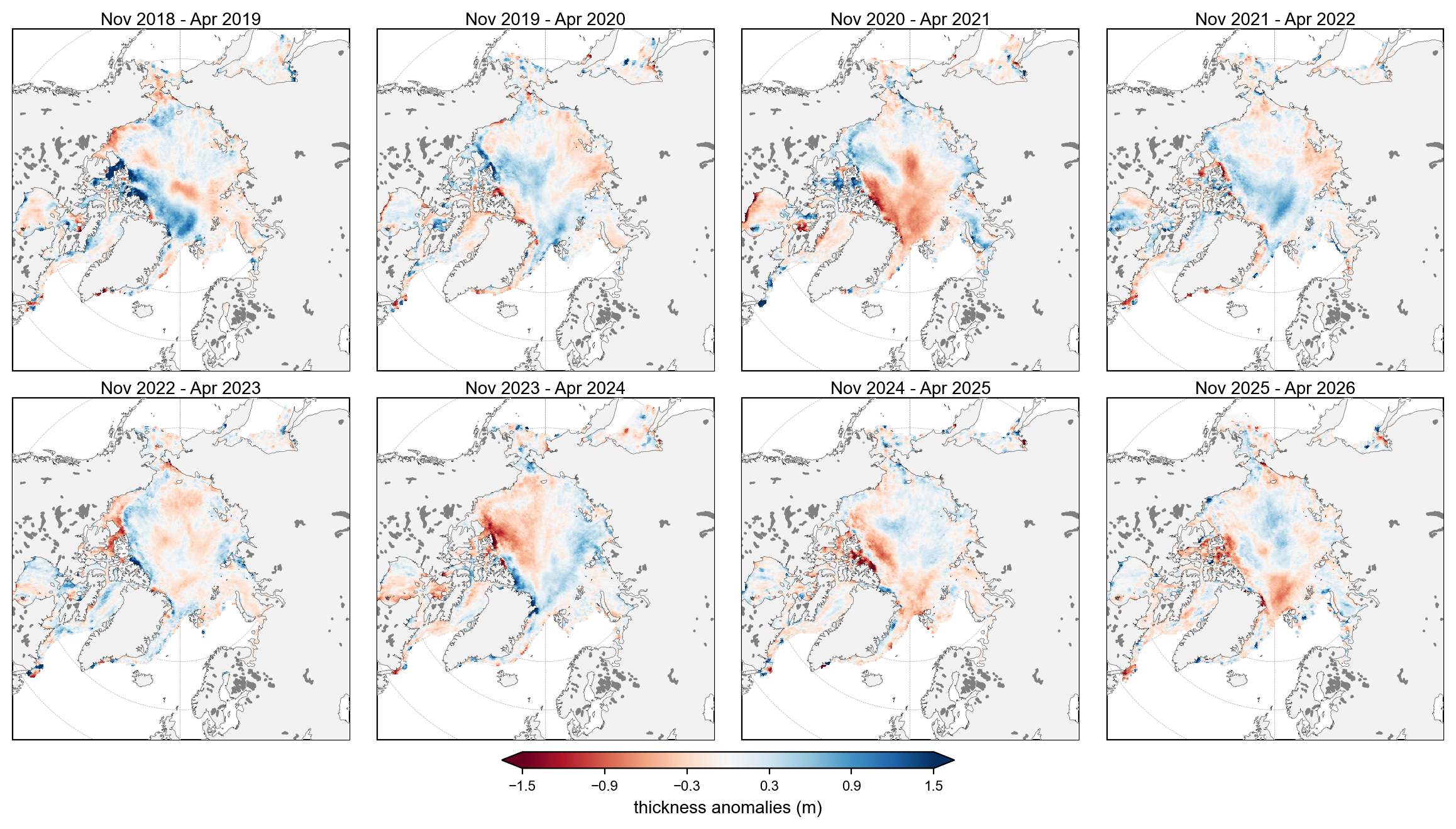

staticArcticMaps_2026(thickness_winter_means-thickness_winter_means.mean(axis=0), dates=thickness_winter_means.time.values,title="", set_cbarlabel = "thickness anomalies (m)", cmap="RdBu", vmin=-1.5, vmax=1.5, out_str='thickness_winter_2018_2026_anomalies')
# Select just the April fields (dropping all other months) and compute the mean April state
april_thickness = IS2SITMOGR4_v4.ice_thickness_int.sel(time=IS2SITMOGR4_v4.time.dt.month == 4)
april_mean = april_thickness.mean(dim='time', keep_attrs=True)
# Mean April thickness across 2019-2026 (the climatology used for the anomalies below)
# expand_dims restores a dummy time axis as the plotting utils expect one

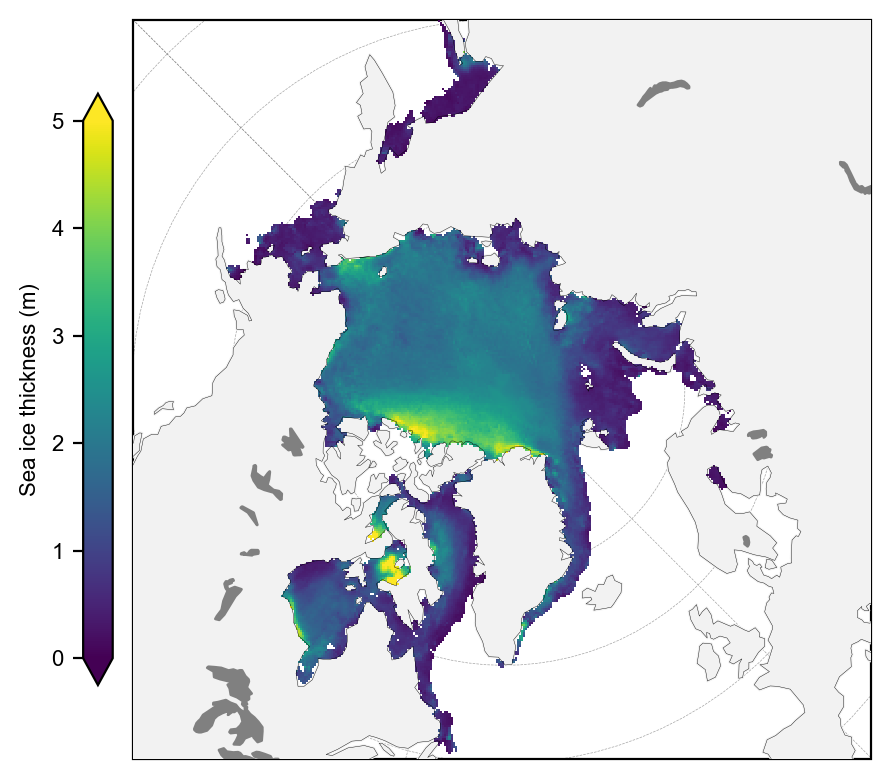

staticArcticMaps(april_mean.expand_dims(time=[april_thickness.time.values[0]]), dates=['April 2019-2026 mean'], title="", set_cbarlabel="Sea ice thickness (m)", col_wrap=1, cmap="viridis", vmin=0, vmax=5, out_str='thickness_april_2019_2026_mean')

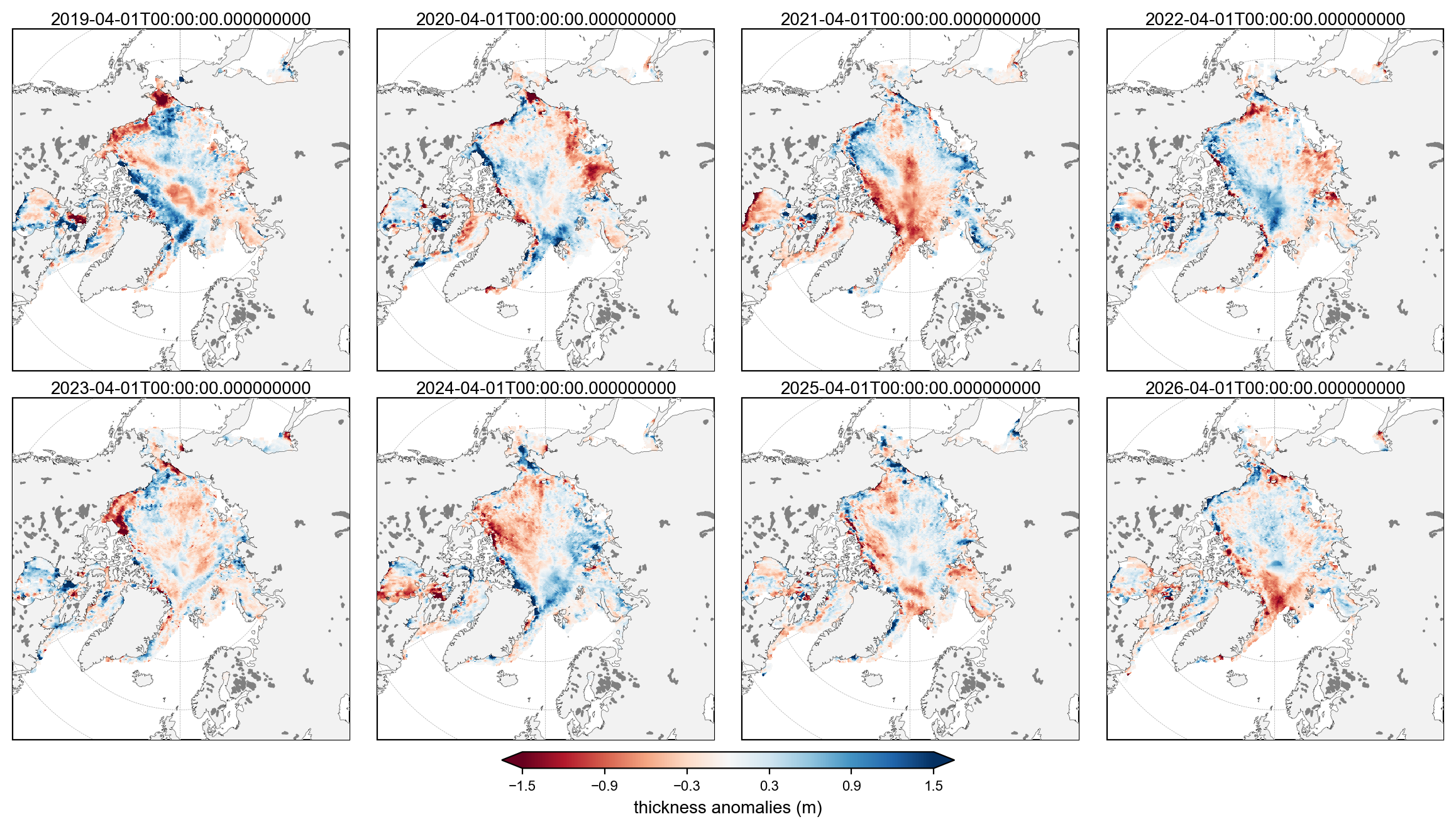

staticArcticMaps_2026(april_thickness - april_mean, dates=april_thickness.time.values, title="", set_cbarlabel = "thickness anomalies (m)", cmap="RdBu", vmin=-1.5, vmax=1.5, out_str='thickness_april_2019_2026_anomalies')

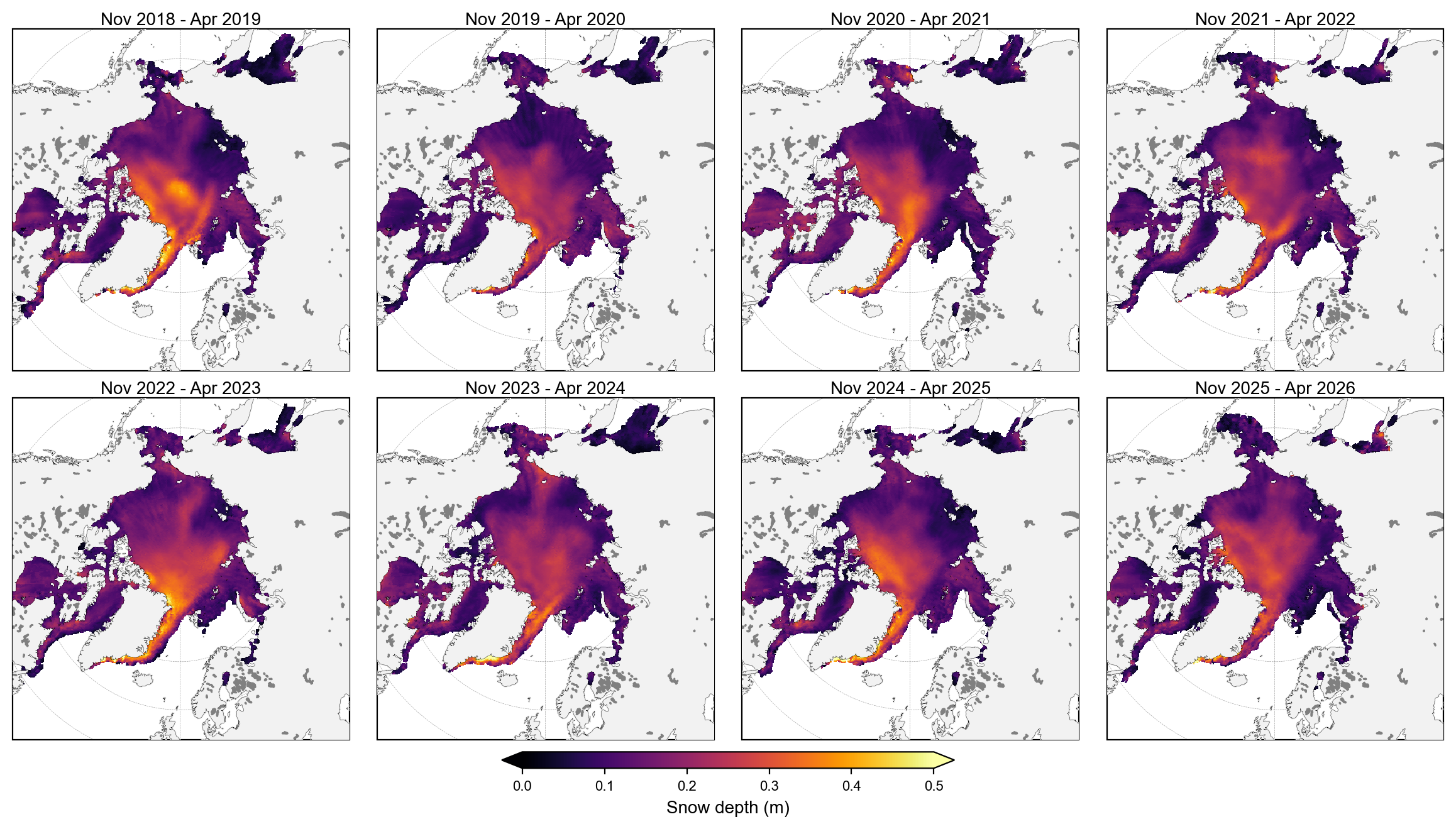

staticArcticMaps_2026(snow_depth_winter_means, dates=snow_depth_winter_means.time.values,title="", set_cbarlabel = "Snow depth (m)", cmap="inferno", vmin=0, vmax=0.5, out_str='snow_depth_winter_2018_2026')

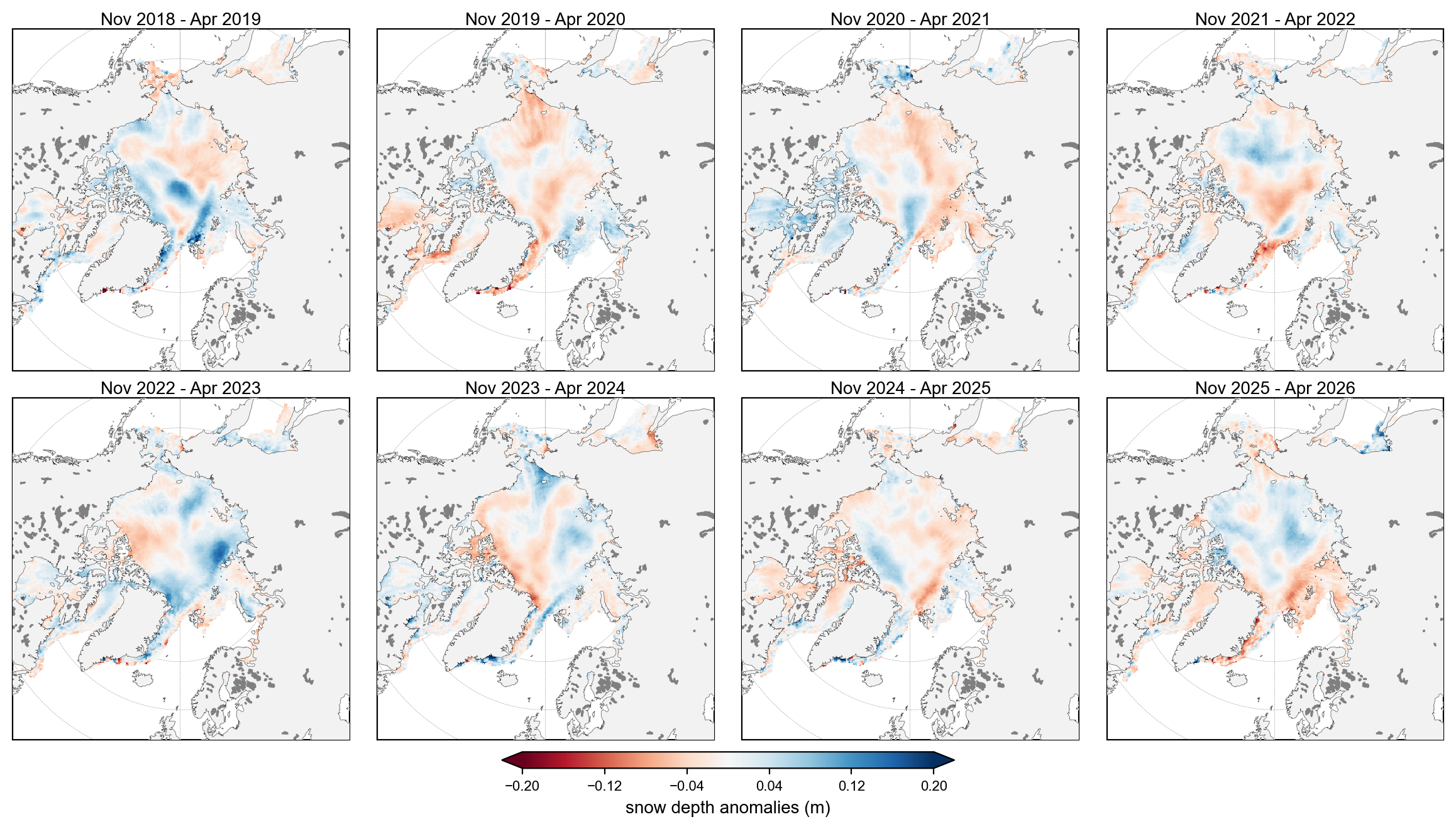

staticArcticMaps_2026(snow_depth_winter_means-snow_depth_winter_means.mean(axis=0), dates=snow_depth_winter_means.time.values,title="", set_cbarlabel = "snow depth anomalies (m)", cmap="RdBu", vmin=-0.2, vmax=0.2, out_str='snow_depth_winter_2018_2026_anoms')
Updated Petty et al., (2023) time-series plots including winter 2025-2026#
Set some analysis configuration options#
# Set a region mask, e.g. to avoid including some of the more uncertain data in the peripheral seas
innerArctic = [1,2,3,4,5]
IS2SITMOGR4_v4_innerArctic = IS2SITMOGR4_v4.where(IS2SITMOGR4_v4.region_mask.isin(innerArctic))
# Drop Sep and October as coverage issues means they are hard to interpret
IS2SITMOGR4_v4_innerArctic = IS2SITMOGR4_v4_innerArctic.where(((IS2SITMOGR4_v4_innerArctic['time.month'] > 10)|(IS2SITMOGR4_v4_innerArctic['time.month'] < 5)), drop=True)
# Uncomment out to set an additional ice type mask too and change the save_label accordingly (0 = FYI, 1 = MYI)
#IS2SITMOGR4_all_innerArctic = IS2SITMOGR4_all_innerArctic.where(IS2SITMOGR4_all_innerArctic.ice_type==1)
save_label='Inner_Arctic'

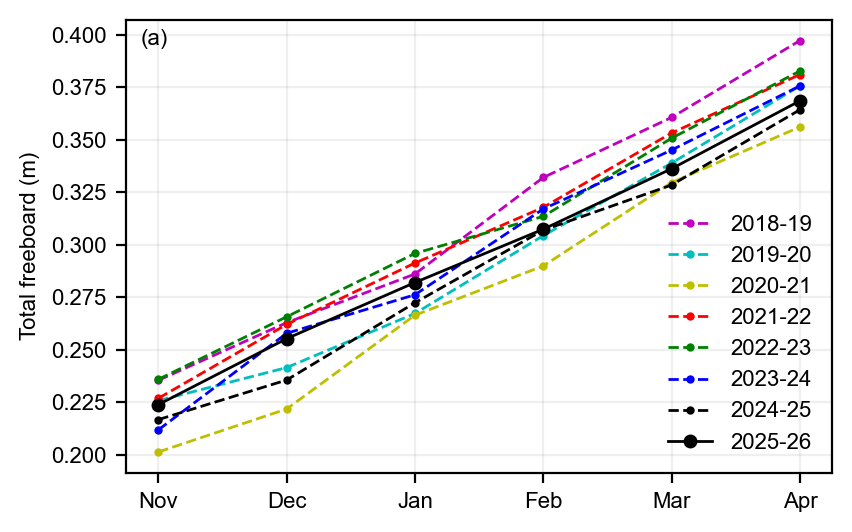

static_winter_comparison_lineplot(IS2SITMOGR4_v4_innerArctic.freeboard, years=years, start_month="Sep",
figsize=(4.3,2.7), annotation='(a)', set_ylabel=r'Total freeboard (m)',
fmts = ['m.--','c.--','y.--','r.--','g.--','b.--','k.--', 'ko-'],
save_label=save_label, loc_pos=4, legend=True)

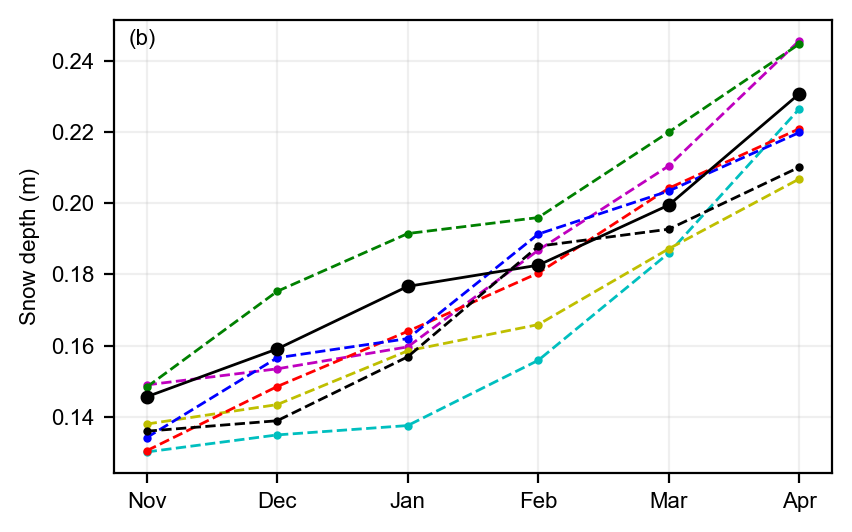

static_winter_comparison_lineplot(IS2SITMOGR4_v4_innerArctic.snow_depth, years=years, start_month="Sep",
figsize=(4.3,2.7), annotation='(b)',set_ylabel='Snow depth (m)',
fmts = ['m.--','c.--','y.--','r.--','g.--','b.--','k.--', 'ko-'],
save_label=save_label, legend=False)

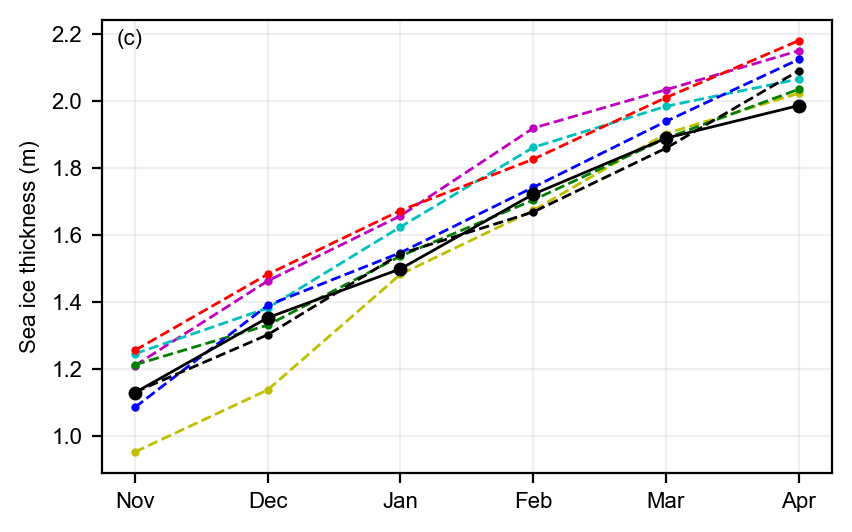

static_winter_comparison_lineplot(IS2SITMOGR4_v4_innerArctic.ice_thickness,
years=years, start_month="Sep", annotation='(c)', figsize=(4.3,2.7),
fmts = ['m.--','c.--','y.--','r.--','g.--','b.--','k.--', 'ko-'],
set_ylabel='Sea ice thickness (m)', save_label=save_label, legend=False)
static_winter_comparison_lineplot(IS2SITMOGR4_v4_innerArctic.snow_density, years=years, start_month="Sep",
figsize=(4.3,2.7), annotation='(d)',set_ylabel=r'Snow density (kg/m$^3$)',
fmts = ['m.--','c.--','y.--','r.--','g.--','b.--','k.--', 'ko-'],
save_label=save_label, legend=False)

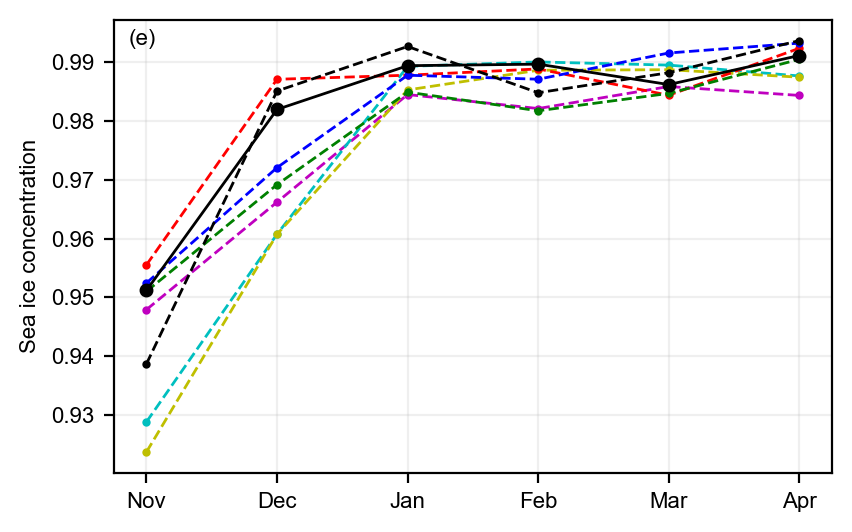

static_winter_comparison_lineplot(IS2SITMOGR4_v4_innerArctic.sea_ice_conc, years=years, start_month="Sep", figsize=(4.3,2.7), annotation='(e)',
fmts = ['m.--','c.--','y.--','r.--','g.--','b.--','k.--', 'ko-'],
set_ylabel='Sea ice concentration', save_label=save_label, legend=False)

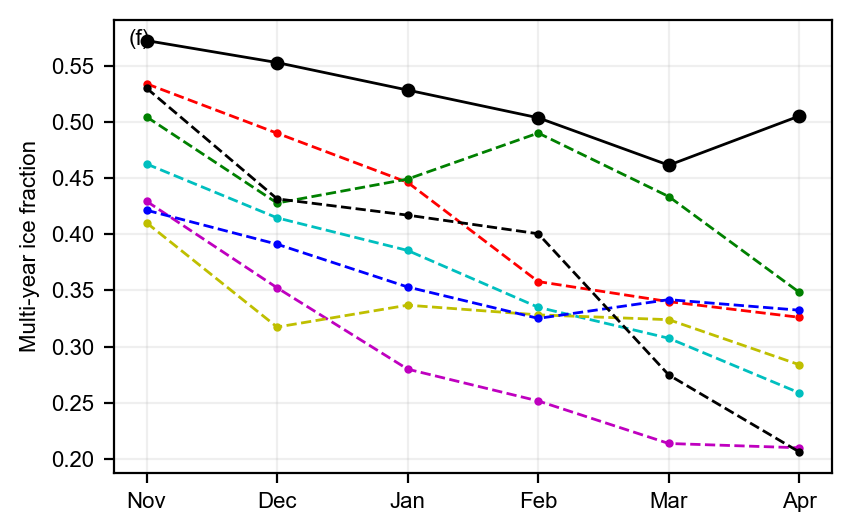

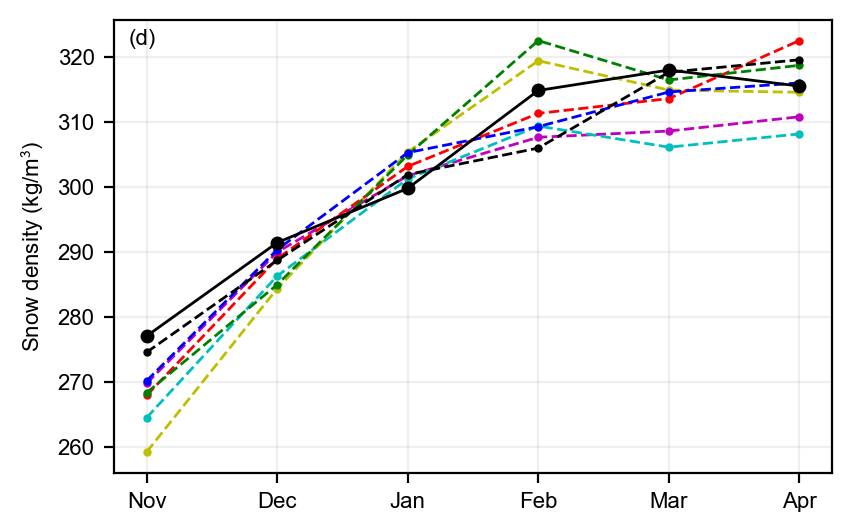

static_winter_comparison_lineplot(IS2SITMOGR4_v4_innerArctic.ice_type, years=years, start_month="Sep",
figsize=(4.3,2.7), annotation='(f)',set_ylabel='Multi-year ice fraction',
fmts = ['m.--','c.--','y.--','r.--','g.--','b.--','k.--', 'ko-'],
save_label=save_label, legend=False)
References#
