Comparisons of all-season ICESat-2 and CryoSat-2 sea ice thickness datasets with BGEP ULS sea ice draft estimates#
Summary: In this notebook, we produce comparisons of all-season monthly gridded ICESat-2 and CryoSat-2 sea ice thickness data with draft measurements obtained from Upward Looking Sonar moorings deployed in the Beaufort Sea.
Author: Alek Petty
Version history:
Version 2 (09/25/2025): updated with new MERRA-2 and ERA5 snow loading and some other tweaks.
Version 1 (05/01/2025)
Import notebook dependencies#
import xarray as xr
import pandas as pd
import numpy as np
import itertools
import pyproj
from netCDF4 import Dataset
import scipy.interpolate
from utils.read_data_utils import read_book_data, read_IS2SITMOGR4 # Helper function for reading the data from the bucket
from utils.plotting_utils import compute_gridcell_winter_means, interactiveArcticMaps, interactive_winter_mean_maps, interactive_winter_comparison_lineplot # Plotting
from utils.extra_funcs import apply_interpolation_time
from scipy import stats
import datetime
# Plotting dependencies
import cartopy.crs as ccrs
from textwrap import wrap
import hvplot.pandas
import holoviews as hv
import matplotlib.pyplot as plt
from matplotlib.axes import Axes
from cartopy.mpl.geoaxes import GeoAxes
GeoAxes._pcolormesh_patched = Axes.pcolormesh # Helps avoid some weird issues with the polar projection
%config InlineBackend.figure_format = 'retina'
import matplotlib as mpl
mpl.rcParams['figure.dpi'] = 00 # Sets figure size in the notebook
# Remove warnings to improve display
import warnings
warnings.filterwarnings('ignore')
# Set some plotting parameters
mpl.rcParams.update({
"text.usetex": False, # Use LaTeX for rendering
"font.family": "sans-serif",
'mathtext.fontset': 'stixsans',
"lines.linewidth": 0.8,
"font.size": 8,
#"lines.alpha": 0.8,
"axes.labelsize": 8,
"xtick.labelsize": 8,
"ytick.labelsize": 8,
"legend.fontsize": 8
})
mpl.rcParams['font.sans-serif'] = ['Arial']
mpl.rcParams['figure.dpi'] = 300
reanalysis = 'e5'
reanalysis_two = 'm2'
start_date = "Nov 2018"
end_date = "July 2021"
options = {
'IS2/SMLG-'+reanalysis.capitalize(): {'thickness': 'ice_thickness_sm_'+reanalysis+'_int', 'snow_depth': 'snow_depth_sm_'+reanalysis+'_int'},
'IS2/SMLG-'+reanalysis_two.capitalize(): {'thickness': 'ice_thickness_sm_'+reanalysis_two+'_int', 'snow_depth': 'snow_depth_sm_'+reanalysis_two+'_int'},
'CS2/SMLG-M2': {'thickness': 'ice_thickness_cs2_ubris', 'snow_depth': 'snow_depth_sm_m2_int'}
}
# Load the all-season wrangled dataset
IS2_CS2_allseason = xr.open_dataset('./data/book_data_allseason_v2.nc')
print("Successfully loaded all-season wrangled dataset")
Successfully loaded all-season wrangled dataset
# Get some map proj info needed for later functions
out_proj = 'EPSG:3411'
mapProj = pyproj.Proj("+init=" + out_proj)
xIS2 = IS2_CS2_allseason.x.values
yIS2 = IS2_CS2_allseason.y.values
xptsIS2, yptsIS2 = np.meshgrid(xIS2, yIS2)
out_lons = IS2_CS2_allseason.longitude.values
out_lats = IS2_CS2_allseason.latitude.values
# List of (year, month) tuples where M2/SM is available
#summer_months = [
# (2019, 5), (2019, 6), (2019, 8), # 2019 May, June, August (not July)
# (2020, 5), (2020, 6), (2020, 7), (2020, 8), # 2020 May-Aug
# (2021, 5), (2021, 6), (2021, 7) # 2021 May-July
#]
# Create a boolean mask for these months
#def is_summer_month(time_index):
# # time_index should be a pandas or numpy datetime64 array
# return np.array([(d.year, d.month) in summer_months for d in pd.to_datetime(time_index)])
#summer_mask = is_summer_month(IS2_CS2_allseason['time'])
#reanalysis = 'm2' # or however you want to set it
# Set your default variable names here:
#ice_thickness_default = 'ice_thickness_nesosim' + int_str # example
#snow_depth_default = 'snow_depth_nesosim' + int_str # example
#if reanalysis == 'm2':
# IS2_CS2_allseason['ice_thickness_for_draft'] = (
# IS2_CS2_allseason['ice_thickness_sm_m2'+int_str].where(m2_mask, IS2_CS2_allseason['ice_thickness_sm'+int_str])
# )
# IS2_CS2_allseason['snow_depth_for_draft'] = (
# IS2_CS2_allseason['snow_depth_sm_m2'+int_str].where(m2_mask, IS2_CS2_allseason['snow_depth_sm'+int_str])
# )
# draft_label = 'IS-2/SM-LG-M2'
#else:
# IS2_CS2_allseason['ice_thickness_for_draft'] = IS2_CS2_allseason['ice_thickness_sm_e5'+int_str]
# IS2_CS2_allseason['snow_depth_for_draft'] = IS2_CS2_allseason['snow_depth_sm_e5'+int_str]
# draft_label = 'IS-2/SM-LG-E5'
# Estimate ice draft from the ICESat-2 data for more direct comparison with ULS draft measurements
# NB: Another option (not taken) is to simply multiply ULS drafts by 1.1 to convert to thickness (the AWI approach)
# Include int_str var = '_int' to use interpolated values.
int_str = '_int'
# Define the variables for each option
#IS-2
IS2_CS2_allseason[f'ice_draft_IS2/SMLG-'+reanalysis.capitalize()] = (IS2_CS2_allseason['ice_thickness_sm_'+reanalysis+int_str] - IS2_CS2_allseason['freeboard'+int_str] + IS2_CS2_allseason['snow_depth_sm_'+reanalysis+int_str])
IS2_CS2_allseason[f'ice_draft_IS2/SMLG-'+reanalysis_two.capitalize()] = (IS2_CS2_allseason['ice_thickness_sm_'+reanalysis_two+int_str] - IS2_CS2_allseason['freeboard'+int_str] + IS2_CS2_allseason['snow_depth_sm_'+reanalysis_two+int_str])
# CS-2
IS2_CS2_allseason[f'ice_draft_CS2/SMLG-M2'] = ((IS2_CS2_allseason['ice_thickness_cs2_ubris']*IS2_CS2_allseason['cs2_sea_ice_density_UBRIS']) + (IS2_CS2_allseason['snow_depth_sm_m2'+int_str] + IS2_CS2_allseason['snow_density_sm_m2'+int_str]))/1024.
# Get date range
IS2_date_range = pd.date_range(start=start_date, end=end_date, freq='MS')+ pd.Timedelta(days=14)# MS indicates a time frequency of start of the month
#IS2_date_range = IS2_date_range[((IS2_date_range.month <5) | (IS2_date_range.month > 8))]
IS2_date_range_strs=[str(date.year)+'-%02d'%(date.month) for date in IS2_date_range]
#IS2_date_range_strs
# This is the value in meters of the aggregation length-scale for the IS-2/CS-2 data.
# A compromise between the 50km used in the original BGEP analysis and the 150km used in the Landy2022 analysis.
comp_res=100000
# Wrangle the ULS data
# I use the raw data, bin it daily then monthly.
dataPathULS='./data/'
def get_ULS_dates(uls_mean_monthly_draft, uls_dates, date):
#print(date)
try:
return uls_mean_monthly_draft[uls_dates==date].values[0]
except:
return np.nan
def get_uls_year(letter, year):
if letter=='a':
print('Mooring A (75.0 N, 150 W)')
uls_x, uls_y = mapProj(-150., 75.)
if letter=='b':
print('Mooring B (78.4 N, 150.0 W)')
uls_x, uls_y = mapProj(-150., 78.4)
if letter=='d':
print('Mooring D (74.0 N, 140.0 W)')
uls_x, uls_y = mapProj(-140., 74.)
uls = pd.read_csv(dataPathULS+'uls'+year+letter+'_draft.dat', sep='\s+',names = ['date', 'time', 'draft'], header=2)
print(uls.head(10))
utc_datetime_uls = pd.to_datetime(uls['date'], format='%Y%m%d')
uls_mean_daily_draft = uls['draft'].groupby([utc_datetime_uls.dt.date]).mean()
uls_mean_monthly_draft = uls['draft'].groupby([utc_datetime_uls.dt.to_period('m')]).mean()
#print(uls_mean_monthly_draft)
return uls_mean_daily_draft, uls_mean_monthly_draft, uls_x, uls_y
uls_mean_daily_draft_a_18, uls_mean_monthly_draft_a_18, uls_x_a, uls_y_a = get_uls_year('a', '18')
uls_mean_daily_draft_b_18, uls_mean_monthly_draft_b_18, uls_x_b, uls_y_b = get_uls_year('b', '18')
uls_mean_daily_draft_d_18, uls_mean_monthly_draft_d_18, uls_x_d, uls_y_d = get_uls_year('d', '18')
Mooring A (75.0 N, 150 W)
date time draft
0 20180925 234211 0.0
1 20180925 234212 0.0
2 20180925 234213 0.0
3 20180925 234214 0.0
4 20180925 234215 0.0
5 20180925 234216 0.0
6 20180925 234217 0.0
7 20180925 234218 0.0
8 20180925 234219 0.0
9 20180925 234220 0.0
Mooring B (78.4 N, 150.0 W)
date time draft
0 20180923 20901 0.0
1 20180923 20902 0.0
2 20180923 20903 0.0
3 20180923 20904 0.0
4 20180923 20905 0.0
5 20180923 20906 0.0
6 20180923 20907 0.0
7 20180923 20908 0.0
8 20180923 20909 0.0
9 20180923 20910 0.0
Mooring D (74.0 N, 140.0 W)
date time draft
0 20180915 10011 0.0
1 20180915 10012 0.0
2 20180915 10013 0.0
3 20180915 10014 0.0
4 20180915 10015 0.0
5 20180915 10016 0.0
6 20180915 10017 0.0
7 20180915 10018 0.0
8 20180915 10019 0.0
9 20180915 10020 0.0
uls_mean_daily_draft_a_21, uls_mean_monthly_draft_a_21, _, _ = get_uls_year('a', '21')
uls_mean_daily_draft_b_21, uls_mean_monthly_draft_b_21, _, _ = get_uls_year('b', '21')
uls_mean_daily_draft_d_21, uls_mean_monthly_draft_d_21, _, _ = get_uls_year('d', '21')
Mooring A (75.0 N, 150 W)
date time draft
0 20210828 235411 2.11
1 20210828 235412 2.04
2 20210828 235413 1.96
3 20210828 235414 1.89
4 20210828 235415 1.82
5 20210828 235416 1.75
6 20210828 235417 1.68
7 20210828 235418 1.61
8 20210828 235419 1.54
9 20210828 235420 1.48
Mooring B (78.4 N, 150.0 W)
date time draft
0 20210831 222825 0.0
1 20210831 222826 0.0
2 20210831 222827 0.0
3 20210831 222828 0.0
4 20210831 222829 0.0
5 20210831 222830 0.0
6 20210831 222831 0.0
7 20210831 222832 0.0
8 20210831 222833 0.0
9 20210831 222834 0.0
Mooring D (74.0 N, 140.0 W)
date time draft
0 20210909 4745 0.0
1 20210909 4746 0.0
2 20210909 4747 0.0
3 20210909 4748 0.0
4 20210909 4749 0.0
5 20210909 4750 0.0
6 20210909 4751 0.0
7 20210909 4752 0.0
8 20210909 4753 0.0
9 20210909 4754 0.0
# Combine data for all years
uls_mean_daily_draft_a = pd.concat([uls_mean_daily_draft_a_18, uls_mean_daily_draft_a_21])
uls_mean_daily_draft_b = pd.concat([uls_mean_daily_draft_b_18, uls_mean_daily_draft_b_21])
uls_mean_daily_draft_d = pd.concat([uls_mean_daily_draft_d_18, uls_mean_daily_draft_d_21])
# Combine data for all years
uls_mean_monthly_draft_a = pd.concat([uls_mean_monthly_draft_a_18, uls_mean_monthly_draft_a_21])
uls_mean_monthly_draft_b = pd.concat([uls_mean_monthly_draft_b_18, uls_mean_monthly_draft_b_21])
uls_mean_monthly_draft_d = pd.concat([uls_mean_monthly_draft_d_18, uls_mean_monthly_draft_d_21])
end_date = "2021-08-01"
uls_mean_daily_draft_a = uls_mean_daily_draft_a[uls_mean_daily_draft_a.index < np.datetime64(end_date)].dropna()
uls_mean_daily_draft_b = uls_mean_daily_draft_b[uls_mean_daily_draft_b.index < np.datetime64(end_date)].dropna()
uls_mean_daily_draft_d = uls_mean_daily_draft_d[uls_mean_daily_draft_d.index < np.datetime64(end_date)].dropna()
uls_mean_monthly_draft_a = uls_mean_monthly_draft_a[uls_mean_monthly_draft_a.index < end_date].dropna()
uls_mean_monthly_draft_b = uls_mean_monthly_draft_b[uls_mean_monthly_draft_b.index < end_date].dropna()
uls_mean_monthly_draft_d = uls_mean_monthly_draft_d[uls_mean_monthly_draft_d.index < end_date].dropna()
start_date = "2018-11-01"
uls_mean_daily_draft_a = uls_mean_daily_draft_a[uls_mean_daily_draft_a.index >= np.datetime64(start_date)].dropna()
uls_mean_daily_draft_b = uls_mean_daily_draft_b[uls_mean_daily_draft_b.index >= np.datetime64(start_date)].dropna()
uls_mean_daily_draft_d = uls_mean_daily_draft_d[uls_mean_daily_draft_d.index >= np.datetime64(start_date)].dropna()
uls_mean_monthly_draft_a = uls_mean_monthly_draft_a[uls_mean_monthly_draft_a.index >= start_date].dropna()
uls_mean_monthly_draft_b = uls_mean_monthly_draft_b[uls_mean_monthly_draft_b.index >= start_date].dropna()
uls_mean_monthly_draft_d = uls_mean_monthly_draft_d[uls_mean_monthly_draft_d.index >= start_date].dropna()
def grid_IS2_nearby(date, option, uls_x, uls_y, res=50000):
#print(date)
IS2 = IS2_CS2_allseason['ice_draft_'+option].sel(time=date)
#xptsIS2g, yptsIS2g = mapProj(IS2.longitude.values, IS2.latitude.values)
dist = np.sqrt((xptsIS2 - uls_x)**2 + (yptsIS2 - uls_y)**2)
IS2_uls = IS2.where(dist<res).mean(skipna=True).values
#print('Number of valid IS-2 grid cells in month '+str(date)[0:7]+':', np.count_nonzero(~np.isnan(IS2.where(dist<res))))
#Another option I first explored, coarsen the data then do nearest neighbor...provided similar results but above is more flexible.
#if coarse_res>1:
#Coarsen array by coarse_res in x/y directions (note that each grid-cell represents 25 km so 4 = 100 km)
# IS2 = IS2.coarsen(x=res, y=res, boundary='pad').mean()
#IS2_uls = scipy.interpolate.griddata((xptsIS2.flatten(), yptsIS2.flatten()), IS2.values.flatten(), (uls_x, uls_y), method = 'nearest')
print(date, option, IS2_uls)
return IS2_uls
# Compute monthly ULS values for each option
monthly_IS2_at_ULS_a_options = {}
monthly_IS2_at_ULS_b_options = {}
monthly_IS2_at_ULS_d_options = {}
monthly_IS2_at_ULS_all_options = {}
for option in options.keys():
monthly_IS2_at_ULS_a_options[option] = [
grid_IS2_nearby(date, option, uls_x_a, uls_y_a, res=comp_res) for date in IS2_date_range
]
monthly_IS2_at_ULS_b_options[option] = [
grid_IS2_nearby(date, option,uls_x_b, uls_y_b, res=comp_res) for date in IS2_date_range
]
monthly_IS2_at_ULS_d_options[option] = [
grid_IS2_nearby(date, option,uls_x_d, uls_y_d, res=comp_res) for date in IS2_date_range
]
# Combine all ULS values for the current option
monthly_IS2_at_ULS_all_options[option] = (
monthly_IS2_at_ULS_a_options[option] +
monthly_IS2_at_ULS_b_options[option] +
monthly_IS2_at_ULS_d_options[option]
)
2018-11-15 00:00:00 IS2/SMLG-E5 0.5941154
2018-12-15 00:00:00 IS2/SMLG-E5 0.94798076
2019-01-15 00:00:00 IS2/SMLG-E5 1.1232307
2019-02-15 00:00:00 IS2/SMLG-E5 1.3838845
2019-03-15 00:00:00 IS2/SMLG-E5 1.9214809
2019-04-15 00:00:00 IS2/SMLG-E5 2.057269
2019-05-15 00:00:00 IS2/SMLG-E5 2.1249423
2019-06-15 00:00:00 IS2/SMLG-E5 1.8776155
2019-07-15 00:00:00 IS2/SMLG-E5 nan
2019-08-15 00:00:00 IS2/SMLG-E5 nan
2019-09-15 00:00:00 IS2/SMLG-E5 nan
2019-10-15 00:00:00 IS2/SMLG-E5 nan
2019-11-15 00:00:00 IS2/SMLG-E5 0.60698074
2019-12-15 00:00:00 IS2/SMLG-E5 0.93857694
2020-01-15 00:00:00 IS2/SMLG-E5 1.1105962
2020-02-15 00:00:00 IS2/SMLG-E5 1.1857885
2020-03-15 00:00:00 IS2/SMLG-E5 1.4347501
2020-04-15 00:00:00 IS2/SMLG-E5 1.6431346
2020-05-15 00:00:00 IS2/SMLG-E5 1.8750578
2020-06-15 00:00:00 IS2/SMLG-E5 1.8289809
2020-07-15 00:00:00 IS2/SMLG-E5 0.70578855
2020-08-15 00:00:00 IS2/SMLG-E5 0.55099994
2020-09-15 00:00:00 IS2/SMLG-E5 0.639
2020-10-15 00:00:00 IS2/SMLG-E5 0.7787885
2020-11-15 00:00:00 IS2/SMLG-E5 0.8914616
2020-12-15 00:00:00 IS2/SMLG-E5 0.89913464
2021-01-15 00:00:00 IS2/SMLG-E5 1.0287114
2021-02-15 00:00:00 IS2/SMLG-E5 1.1929231
2021-03-15 00:00:00 IS2/SMLG-E5 1.5794616
2021-04-15 00:00:00 IS2/SMLG-E5 1.8243078
2021-05-15 00:00:00 IS2/SMLG-E5 2.0777307
2021-06-15 00:00:00 IS2/SMLG-E5 1.71525
2021-07-15 00:00:00 IS2/SMLG-E5 0.7386345
2018-11-15 00:00:00 IS2/SMLG-E5 0.47373998
2018-12-15 00:00:00 IS2/SMLG-E5 0.65224
2019-01-15 00:00:00 IS2/SMLG-E5 0.88808
2019-02-15 00:00:00 IS2/SMLG-E5 0.97352004
2019-03-15 00:00:00 IS2/SMLG-E5 1.41274
2019-04-15 00:00:00 IS2/SMLG-E5 1.55278
2019-05-15 00:00:00 IS2/SMLG-E5 2.16676
2019-06-15 00:00:00 IS2/SMLG-E5 2.27472
2019-07-15 00:00:00 IS2/SMLG-E5 nan
2019-08-15 00:00:00 IS2/SMLG-E5 0.81884444
2019-09-15 00:00:00 IS2/SMLG-E5 0.7974516
2019-10-15 00:00:00 IS2/SMLG-E5 0.8662801
2019-11-15 00:00:00 IS2/SMLG-E5 0.95692
2019-12-15 00:00:00 IS2/SMLG-E5 1.09812
2020-01-15 00:00:00 IS2/SMLG-E5 1.26266
2020-02-15 00:00:00 IS2/SMLG-E5 1.53642
2020-03-15 00:00:00 IS2/SMLG-E5 1.53142
2020-04-15 00:00:00 IS2/SMLG-E5 1.62696
2020-05-15 00:00:00 IS2/SMLG-E5 1.6374398
2020-06-15 00:00:00 IS2/SMLG-E5 1.8070999
2020-07-15 00:00:00 IS2/SMLG-E5 0.62468004
2020-08-15 00:00:00 IS2/SMLG-E5 0.651
2020-09-15 00:00:00 IS2/SMLG-E5 0.6016667
2020-10-15 00:00:00 IS2/SMLG-E5 0.52062005
2020-11-15 00:00:00 IS2/SMLG-E5 0.5832
2020-12-15 00:00:00 IS2/SMLG-E5 0.9466599
2021-01-15 00:00:00 IS2/SMLG-E5 1.25126
2021-02-15 00:00:00 IS2/SMLG-E5 1.4481
2021-03-15 00:00:00 IS2/SMLG-E5 1.66464
2021-04-15 00:00:00 IS2/SMLG-E5 1.80984
2021-05-15 00:00:00 IS2/SMLG-E5 1.9285
2021-06-15 00:00:00 IS2/SMLG-E5 1.64134
2021-07-15 00:00:00 IS2/SMLG-E5 1.0927
2018-11-15 00:00:00 IS2/SMLG-E5 0.72830003
2018-12-15 00:00:00 IS2/SMLG-E5 1.0467399
2019-01-15 00:00:00 IS2/SMLG-E5 1.4275
2019-02-15 00:00:00 IS2/SMLG-E5 1.7822199
2019-03-15 00:00:00 IS2/SMLG-E5 2.0918798
2019-04-15 00:00:00 IS2/SMLG-E5 2.06964
2019-05-15 00:00:00 IS2/SMLG-E5 1.99894
2019-06-15 00:00:00 IS2/SMLG-E5 1.5218371
2019-07-15 00:00:00 IS2/SMLG-E5 nan
2019-08-15 00:00:00 IS2/SMLG-E5 nan
2019-09-15 00:00:00 IS2/SMLG-E5 nan
2019-10-15 00:00:00 IS2/SMLG-E5 0.5838518
2019-11-15 00:00:00 IS2/SMLG-E5 0.64522004
2019-12-15 00:00:00 IS2/SMLG-E5 1.0899799
2020-01-15 00:00:00 IS2/SMLG-E5 1.2973601
2020-02-15 00:00:00 IS2/SMLG-E5 1.4109399
2020-03-15 00:00:00 IS2/SMLG-E5 1.6935998
2020-04-15 00:00:00 IS2/SMLG-E5 2.0563002
2020-05-15 00:00:00 IS2/SMLG-E5 2.07406
2020-06-15 00:00:00 IS2/SMLG-E5 1.76022
2020-07-15 00:00:00 IS2/SMLG-E5 0.73486006
2020-08-15 00:00:00 IS2/SMLG-E5 0.50064105
2020-09-15 00:00:00 IS2/SMLG-E5 nan
2020-10-15 00:00:00 IS2/SMLG-E5 0.50060004
2020-11-15 00:00:00 IS2/SMLG-E5 0.67644
2020-12-15 00:00:00 IS2/SMLG-E5 1.06558
2021-01-15 00:00:00 IS2/SMLG-E5 1.7070401
2021-02-15 00:00:00 IS2/SMLG-E5 1.71338
2021-03-15 00:00:00 IS2/SMLG-E5 1.9271
2021-04-15 00:00:00 IS2/SMLG-E5 2.0232198
2021-05-15 00:00:00 IS2/SMLG-E5 2.32064
2021-06-15 00:00:00 IS2/SMLG-E5 1.7958002
2021-07-15 00:00:00 IS2/SMLG-E5 0.82938004
2018-11-15 00:00:00 IS2/SMLG-M2 0.58128846
2018-12-15 00:00:00 IS2/SMLG-M2 0.98536533
2019-01-15 00:00:00 IS2/SMLG-M2 1.1121539
2019-02-15 00:00:00 IS2/SMLG-M2 1.3677884
2019-03-15 00:00:00 IS2/SMLG-M2 1.9236153
2019-04-15 00:00:00 IS2/SMLG-M2 2.1319232
2019-05-15 00:00:00 IS2/SMLG-M2 2.0145383
2019-06-15 00:00:00 IS2/SMLG-M2 1.3804231
2019-07-15 00:00:00 IS2/SMLG-M2 nan
2019-08-15 00:00:00 IS2/SMLG-M2 nan
2019-09-15 00:00:00 IS2/SMLG-M2 nan
2019-10-15 00:00:00 IS2/SMLG-M2 nan
2019-11-15 00:00:00 IS2/SMLG-M2 0.54715383
2019-12-15 00:00:00 IS2/SMLG-M2 0.7850384
2020-01-15 00:00:00 IS2/SMLG-M2 0.91053843
2020-02-15 00:00:00 IS2/SMLG-M2 1.0032308
2020-03-15 00:00:00 IS2/SMLG-M2 1.3775386
2020-04-15 00:00:00 IS2/SMLG-M2 1.5185578
2020-05-15 00:00:00 IS2/SMLG-M2 1.7076347
2020-06-15 00:00:00 IS2/SMLG-M2 1.2663846
2020-07-15 00:00:00 IS2/SMLG-M2 0.6146731
2020-08-15 00:00:00 IS2/SMLG-M2 0.5667778
2020-09-15 00:00:00 IS2/SMLG-M2 0.5906666
2020-10-15 00:00:00 IS2/SMLG-M2 0.66394234
2020-11-15 00:00:00 IS2/SMLG-M2 0.70473075
2020-12-15 00:00:00 IS2/SMLG-M2 0.7486538
2021-01-15 00:00:00 IS2/SMLG-M2 0.90103847
2021-02-15 00:00:00 IS2/SMLG-M2 1.0790384
2021-03-15 00:00:00 IS2/SMLG-M2 1.4899423
2021-04-15 00:00:00 IS2/SMLG-M2 1.6401731
2021-05-15 00:00:00 IS2/SMLG-M2 1.8792884
2021-06-15 00:00:00 IS2/SMLG-M2 1.3924807
2021-07-15 00:00:00 IS2/SMLG-M2 0.6779999
2018-11-15 00:00:00 IS2/SMLG-M2 0.48632
2018-12-15 00:00:00 IS2/SMLG-M2 0.76694
2019-01-15 00:00:00 IS2/SMLG-M2 1.0925599
2019-02-15 00:00:00 IS2/SMLG-M2 1.2165
2019-03-15 00:00:00 IS2/SMLG-M2 1.4892
2019-04-15 00:00:00 IS2/SMLG-M2 1.5948399
2019-05-15 00:00:00 IS2/SMLG-M2 2.0525
2019-06-15 00:00:00 IS2/SMLG-M2 1.70138
2019-07-15 00:00:00 IS2/SMLG-M2 nan
2019-08-15 00:00:00 IS2/SMLG-M2 0.81720006
2019-09-15 00:00:00 IS2/SMLG-M2 0.77454835
2019-10-15 00:00:00 IS2/SMLG-M2 0.79902005
2019-11-15 00:00:00 IS2/SMLG-M2 0.90511996
2019-12-15 00:00:00 IS2/SMLG-M2 1.0577999
2020-01-15 00:00:00 IS2/SMLG-M2 1.2289
2020-02-15 00:00:00 IS2/SMLG-M2 1.5128
2020-03-15 00:00:00 IS2/SMLG-M2 1.5317799
2020-04-15 00:00:00 IS2/SMLG-M2 1.3895999
2020-05-15 00:00:00 IS2/SMLG-M2 1.3124601
2020-06-15 00:00:00 IS2/SMLG-M2 1.0246
2020-07-15 00:00:00 IS2/SMLG-M2 0.57628
2020-08-15 00:00:00 IS2/SMLG-M2 0.60800004
2020-09-15 00:00:00 IS2/SMLG-M2 0.5086667
2020-10-15 00:00:00 IS2/SMLG-M2 0.42316
2020-11-15 00:00:00 IS2/SMLG-M2 0.48127997
2020-12-15 00:00:00 IS2/SMLG-M2 0.79047996
2021-01-15 00:00:00 IS2/SMLG-M2 1.21528
2021-02-15 00:00:00 IS2/SMLG-M2 1.49848
2021-03-15 00:00:00 IS2/SMLG-M2 1.6951401
2021-04-15 00:00:00 IS2/SMLG-M2 1.77276
2021-05-15 00:00:00 IS2/SMLG-M2 1.7695199
2021-06-15 00:00:00 IS2/SMLG-M2 1.2318
2021-07-15 00:00:00 IS2/SMLG-M2 0.73498
2018-11-15 00:00:00 IS2/SMLG-M2 0.7534799
2018-12-15 00:00:00 IS2/SMLG-M2 1.14638
2019-01-15 00:00:00 IS2/SMLG-M2 1.5150399
2019-02-15 00:00:00 IS2/SMLG-M2 1.8269199
2019-03-15 00:00:00 IS2/SMLG-M2 2.0876
2019-04-15 00:00:00 IS2/SMLG-M2 2.09132
2019-05-15 00:00:00 IS2/SMLG-M2 1.9558799
2019-06-15 00:00:00 IS2/SMLG-M2 1.3864883
2019-07-15 00:00:00 IS2/SMLG-M2 nan
2019-08-15 00:00:00 IS2/SMLG-M2 nan
2019-09-15 00:00:00 IS2/SMLG-M2 nan
2019-10-15 00:00:00 IS2/SMLG-M2 0.5557408
2019-11-15 00:00:00 IS2/SMLG-M2 0.61566
2019-12-15 00:00:00 IS2/SMLG-M2 1.05398
2020-01-15 00:00:00 IS2/SMLG-M2 1.30022
2020-02-15 00:00:00 IS2/SMLG-M2 1.41456
2020-03-15 00:00:00 IS2/SMLG-M2 1.6998
2020-04-15 00:00:00 IS2/SMLG-M2 2.01522
2020-05-15 00:00:00 IS2/SMLG-M2 1.9481399
2020-06-15 00:00:00 IS2/SMLG-M2 1.3949798
2020-07-15 00:00:00 IS2/SMLG-M2 0.70324004
2020-08-15 00:00:00 IS2/SMLG-M2 0.498359
2020-09-15 00:00:00 IS2/SMLG-M2 nan
2020-10-15 00:00:00 IS2/SMLG-M2 0.48438
2020-11-15 00:00:00 IS2/SMLG-M2 0.55828
2020-12-15 00:00:00 IS2/SMLG-M2 0.95022005
2021-01-15 00:00:00 IS2/SMLG-M2 1.6225199
2021-02-15 00:00:00 IS2/SMLG-M2 1.65444
2021-03-15 00:00:00 IS2/SMLG-M2 1.89406
2021-04-15 00:00:00 IS2/SMLG-M2 1.8850999
2021-05-15 00:00:00 IS2/SMLG-M2 2.1650999
2021-06-15 00:00:00 IS2/SMLG-M2 1.6275799
2021-07-15 00:00:00 IS2/SMLG-M2 0.92748
2018-11-15 00:00:00 CS2/SMLG-M2 0.6012352533367209
2018-12-15 00:00:00 CS2/SMLG-M2 0.8153927884093556
2019-01-15 00:00:00 CS2/SMLG-M2 0.820761489965925
2019-02-15 00:00:00 CS2/SMLG-M2 1.3837659994796316
2019-03-15 00:00:00 CS2/SMLG-M2 1.580826687857736
2019-04-15 00:00:00 CS2/SMLG-M2 1.6413879863377534
2019-05-15 00:00:00 CS2/SMLG-M2 1.32761573572704
2019-06-15 00:00:00 CS2/SMLG-M2 1.7003042666719357
2019-07-15 00:00:00 CS2/SMLG-M2 nan
2019-08-15 00:00:00 CS2/SMLG-M2 nan
2019-09-15 00:00:00 CS2/SMLG-M2 nan
2019-10-15 00:00:00 CS2/SMLG-M2 nan
2019-11-15 00:00:00 CS2/SMLG-M2 0.47650766155409785
2019-12-15 00:00:00 CS2/SMLG-M2 1.0206371958674971
2020-01-15 00:00:00 CS2/SMLG-M2 1.0568214743240307
2020-02-15 00:00:00 CS2/SMLG-M2 1.1867087817287838
2020-03-15 00:00:00 CS2/SMLG-M2 1.9237640769937654
2020-04-15 00:00:00 CS2/SMLG-M2 2.1665528786591066
2020-05-15 00:00:00 CS2/SMLG-M2 2.044249189875285
2020-06-15 00:00:00 CS2/SMLG-M2 1.5002631096173984
2020-07-15 00:00:00 CS2/SMLG-M2 0.741398082861264
2020-08-15 00:00:00 CS2/SMLG-M2 0.4980433208030213
2020-09-15 00:00:00 CS2/SMLG-M2 0.33014988809817625
2020-10-15 00:00:00 CS2/SMLG-M2 0.45906926549658805
2020-11-15 00:00:00 CS2/SMLG-M2 0.7334303098769551
2020-12-15 00:00:00 CS2/SMLG-M2 1.148670707871999
2021-01-15 00:00:00 CS2/SMLG-M2 1.2575137693318048
2021-02-15 00:00:00 CS2/SMLG-M2 1.32912911803362
2021-03-15 00:00:00 CS2/SMLG-M2 1.3862593583960234
2021-04-15 00:00:00 CS2/SMLG-M2 1.3968793180275763
2021-05-15 00:00:00 CS2/SMLG-M2 1.485933057266566
2021-06-15 00:00:00 CS2/SMLG-M2 1.1857245496700957
2021-07-15 00:00:00 CS2/SMLG-M2 0.6922791350711676
2018-11-15 00:00:00 CS2/SMLG-M2 0.8900703058804867
2018-12-15 00:00:00 CS2/SMLG-M2 1.0272280098773467
2019-01-15 00:00:00 CS2/SMLG-M2 1.0842384206235876
2019-02-15 00:00:00 CS2/SMLG-M2 1.5727490997116547
2019-03-15 00:00:00 CS2/SMLG-M2 2.299593233370688
2019-04-15 00:00:00 CS2/SMLG-M2 2.6398721525818107
2019-05-15 00:00:00 CS2/SMLG-M2 2.3272748774766425
2019-06-15 00:00:00 CS2/SMLG-M2 1.982525247734178
2019-07-15 00:00:00 CS2/SMLG-M2 nan
2019-08-15 00:00:00 CS2/SMLG-M2 0.6069288799142842
2019-09-15 00:00:00 CS2/SMLG-M2 0.7617646319119442
2019-10-15 00:00:00 CS2/SMLG-M2 0.7296049716976696
2019-11-15 00:00:00 CS2/SMLG-M2 1.148426669004703
2019-12-15 00:00:00 CS2/SMLG-M2 1.2224763077963388
2020-01-15 00:00:00 CS2/SMLG-M2 1.2958453032421704
2020-02-15 00:00:00 CS2/SMLG-M2 1.4356376438929477
2020-03-15 00:00:00 CS2/SMLG-M2 1.9897230537640218
2020-04-15 00:00:00 CS2/SMLG-M2 2.6687034559107725
2020-05-15 00:00:00 CS2/SMLG-M2 2.724749518152022
2020-06-15 00:00:00 CS2/SMLG-M2 2.1451169637475433
2020-07-15 00:00:00 CS2/SMLG-M2 0.9211726258119474
2020-08-15 00:00:00 CS2/SMLG-M2 0.7728285254906487
2020-09-15 00:00:00 CS2/SMLG-M2 0.6942013536079124
2020-10-15 00:00:00 CS2/SMLG-M2 0.4981439843644604
2020-11-15 00:00:00 CS2/SMLG-M2 1.059649091301835
2020-12-15 00:00:00 CS2/SMLG-M2 1.3118944999554325
2021-01-15 00:00:00 CS2/SMLG-M2 1.3984070512906968
2021-02-15 00:00:00 CS2/SMLG-M2 1.4423321557512918
2021-03-15 00:00:00 CS2/SMLG-M2 1.7942473122567377
2021-04-15 00:00:00 CS2/SMLG-M2 1.9939921988802844
2021-05-15 00:00:00 CS2/SMLG-M2 1.976713356655778
2021-06-15 00:00:00 CS2/SMLG-M2 1.674475880176959
2021-07-15 00:00:00 CS2/SMLG-M2 1.694108700943081
2018-11-15 00:00:00 CS2/SMLG-M2 0.7037313676034664
2018-12-15 00:00:00 CS2/SMLG-M2 1.2806824003663386
2019-01-15 00:00:00 CS2/SMLG-M2 1.2365055428902272
2019-02-15 00:00:00 CS2/SMLG-M2 1.1538694160336618
2019-03-15 00:00:00 CS2/SMLG-M2 1.2426630765833202
2019-04-15 00:00:00 CS2/SMLG-M2 1.4436240634656081
2019-05-15 00:00:00 CS2/SMLG-M2 1.353567757986005
2019-06-15 00:00:00 CS2/SMLG-M2 1.3976132189098807
2019-07-15 00:00:00 CS2/SMLG-M2 nan
2019-08-15 00:00:00 CS2/SMLG-M2 nan
2019-09-15 00:00:00 CS2/SMLG-M2 nan
2019-10-15 00:00:00 CS2/SMLG-M2 0.28340840518076615
2019-11-15 00:00:00 CS2/SMLG-M2 0.7736675487826595
2019-12-15 00:00:00 CS2/SMLG-M2 1.0296410412303538
2020-01-15 00:00:00 CS2/SMLG-M2 1.1166483985068079
2020-02-15 00:00:00 CS2/SMLG-M2 1.140647365007332
2020-03-15 00:00:00 CS2/SMLG-M2 1.5181499437727135
2020-04-15 00:00:00 CS2/SMLG-M2 1.692634520566162
2020-05-15 00:00:00 CS2/SMLG-M2 1.5910504115331505
2020-06-15 00:00:00 CS2/SMLG-M2 1.4056480181975148
2020-07-15 00:00:00 CS2/SMLG-M2 0.5528738459595642
2020-08-15 00:00:00 CS2/SMLG-M2 0.5237700486186677
2020-09-15 00:00:00 CS2/SMLG-M2 nan
2020-10-15 00:00:00 CS2/SMLG-M2 0.36194746606696365
2020-11-15 00:00:00 CS2/SMLG-M2 0.8604620451339605
2020-12-15 00:00:00 CS2/SMLG-M2 1.0621956450171963
2021-01-15 00:00:00 CS2/SMLG-M2 1.2477460216177167
2021-02-15 00:00:00 CS2/SMLG-M2 1.3017887439281566
2021-03-15 00:00:00 CS2/SMLG-M2 1.362111304209406
2021-04-15 00:00:00 CS2/SMLG-M2 1.421457172960295
2021-05-15 00:00:00 CS2/SMLG-M2 1.3658561715339803
2021-06-15 00:00:00 CS2/SMLG-M2 1.2646598346397024
2021-07-15 00:00:00 CS2/SMLG-M2 0.5397154018492917
uls_dates=uls_mean_monthly_draft_a.index.astype(str)
uls_mean_monthly_draft_a_IS2_period = [get_ULS_dates(uls_mean_monthly_draft_a, uls_dates, date) for date in IS2_date_range_strs]
uls_dates=uls_mean_monthly_draft_b.index.astype(str)
uls_mean_monthly_draft_b_IS2_period = [get_ULS_dates(uls_mean_monthly_draft_b, uls_dates, date) for date in IS2_date_range_strs]
uls_dates=uls_mean_monthly_draft_d.index.astype(str)
uls_mean_monthly_draft_d_IS2_period = [get_ULS_dates(uls_mean_monthly_draft_d, uls_dates, date) for date in IS2_date_range_strs]
uls_mean_monthly_draft_IS2_period = uls_mean_monthly_draft_a_IS2_period+uls_mean_monthly_draft_b_IS2_period+uls_mean_monthly_draft_d_IS2_period
# Validation analysis for each option
validation_results = {}
for option in options.keys():
print(option)
# ULS A
mask_a = ~np.isnan(monthly_IS2_at_ULS_a_options[option])& ~np.isnan(uls_mean_monthly_draft_a_IS2_period)
res_a = stats.linregress(
np.array(monthly_IS2_at_ULS_a_options[option])[mask_a],
np.array(uls_mean_monthly_draft_a_IS2_period)[mask_a]
)
r_str_a = '%.02f' % (res_a[2]**2)
mb_str_a = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_a_options[option]) - np.array(uls_mean_monthly_draft_a_IS2_period)))
sd_str_a = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_a_options[option]) - np.array(uls_mean_monthly_draft_a_IS2_period)))
# ULS B
mask_b = ~np.isnan(monthly_IS2_at_ULS_b_options[option])& ~np.isnan(uls_mean_monthly_draft_b_IS2_period)
res_b = stats.linregress(
np.array(monthly_IS2_at_ULS_b_options[option])[mask_b],
np.array(uls_mean_monthly_draft_b_IS2_period)[mask_b]
)
r_str_b = '%.02f' % (res_b[2]**2)
mb_str_b = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_b_options[option]) - np.array(uls_mean_monthly_draft_b_IS2_period)))
sd_str_b = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_b_options[option]) - np.array(uls_mean_monthly_draft_b_IS2_period)))
# ULS D
mask_d = ~np.isnan(monthly_IS2_at_ULS_d_options[option])& ~np.isnan(uls_mean_monthly_draft_b_IS2_period)
res_d = stats.linregress(
np.array(monthly_IS2_at_ULS_d_options[option])[mask_d],
np.array(uls_mean_monthly_draft_d_IS2_period)[mask_d]
)
r_str_d = '%.02f' % (res_d[2]**2)
mb_str_d = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_d_options[option]) - np.array(uls_mean_monthly_draft_d_IS2_period)))
sd_str_d = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_d_options[option]) - np.array(uls_mean_monthly_draft_d_IS2_period)))
# ULS ALL
mask_all = ~np.isnan(monthly_IS2_at_ULS_all_options[option])& ~np.isnan(uls_mean_monthly_draft_IS2_period)
res_all = stats.linregress(
np.array(monthly_IS2_at_ULS_all_options[option])[mask_all],
np.array(uls_mean_monthly_draft_IS2_period)[mask_all]
)
r_str_all = '%.02f' % (res_all[2]**2)
mb_str_all = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_all_options[option]) - np.array(uls_mean_monthly_draft_IS2_period)))
sd_str_all = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_all_options[option]) - np.array(uls_mean_monthly_draft_IS2_period)))
# Store results
validation_results[option] = {
'r_str_a': r_str_a, 'mb_str_a': mb_str_a, 'sd_str_a': sd_str_a,
'r_str_b': r_str_b, 'mb_str_b': mb_str_b, 'sd_str_b': sd_str_b,
'r_str_d': r_str_d, 'mb_str_d': mb_str_d, 'sd_str_d': sd_str_d,
'r_str_all': r_str_all, 'mb_str_all': mb_str_all, 'sd_str_all': sd_str_all
}
validation_results
IS2/SMLG-E5
IS2/SMLG-M2
CS2/SMLG-M2
{'IS2/SMLG-E5': {'r_str_a': '0.79',
'mb_str_a': '0.14',
'sd_str_a': '0.24',
'r_str_b': '0.72',
'mb_str_b': '0.15',
'sd_str_b': '0.31',
'r_str_d': '0.85',
'mb_str_d': '0.21',
'sd_str_d': '0.26',
'r_str_all': '0.76',
'mb_str_all': '0.16',
'sd_str_all': '0.27'},
'IS2/SMLG-M2': {'r_str_a': '0.74',
'mb_str_a': '0.01',
'sd_str_a': '0.26',
'r_str_b': '0.76',
'mb_str_b': '0.07',
'sd_str_b': '0.30',
'r_str_d': '0.79',
'mb_str_d': '0.16',
'sd_str_d': '0.28',
'r_str_all': '0.73',
'mb_str_all': '0.08',
'sd_str_all': '0.29'},
'CS2/SMLG-M2': {'r_str_a': '0.74',
'mb_str_a': '0.02',
'sd_str_a': '0.26',
'r_str_b': '0.82',
'mb_str_b': '0.42',
'sd_str_b': '0.28',
'r_str_d': '0.77',
'mb_str_d': '-0.10',
'sd_str_d': '0.32',
'r_str_all': '0.60',
'mb_str_all': '0.11',
'sd_str_all': '0.36'}}
uls_mean_monthly_draft_a.index.to_timestamp()+ pd.Timedelta(days=14)
DatetimeIndex(['2018-11-15', '2018-12-15', '2019-01-15', '2019-02-15',
'2019-03-15', '2019-04-15', '2019-05-15', '2019-06-15',
'2019-07-15', '2019-08-15', '2019-09-15', '2019-10-15',
'2019-11-15', '2019-12-15', '2020-01-15', '2020-02-15',
'2020-03-15', '2020-04-15', '2020-05-15', '2020-06-15',
'2020-07-15', '2020-08-15', '2020-09-15', '2020-10-15',
'2020-11-15', '2020-12-15', '2021-01-15', '2021-02-15',
'2021-03-15', '2021-04-15', '2021-05-15', '2021-06-15',
'2021-07-15'],
dtype='datetime64[ns]', name='date', freq=None)

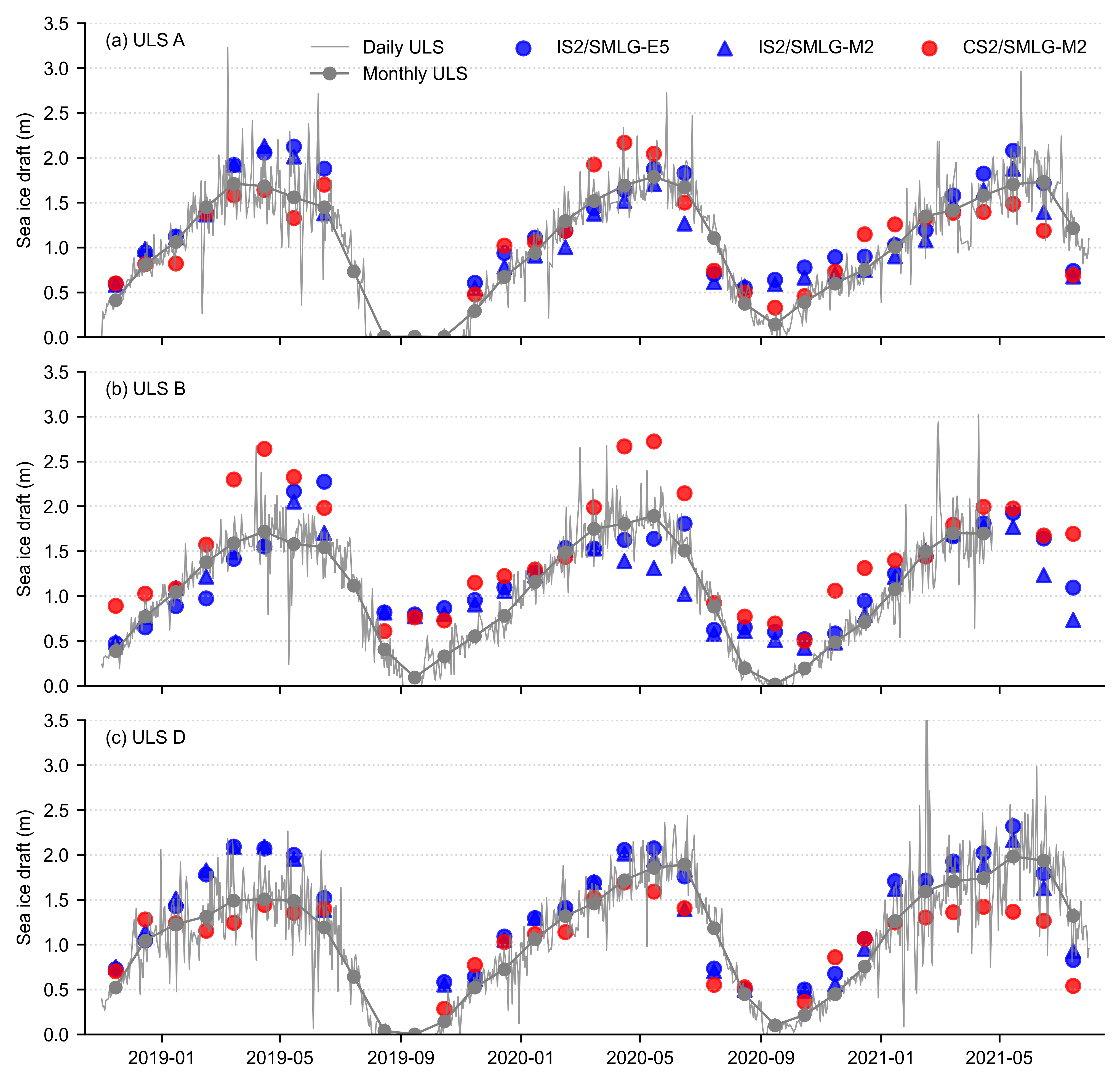

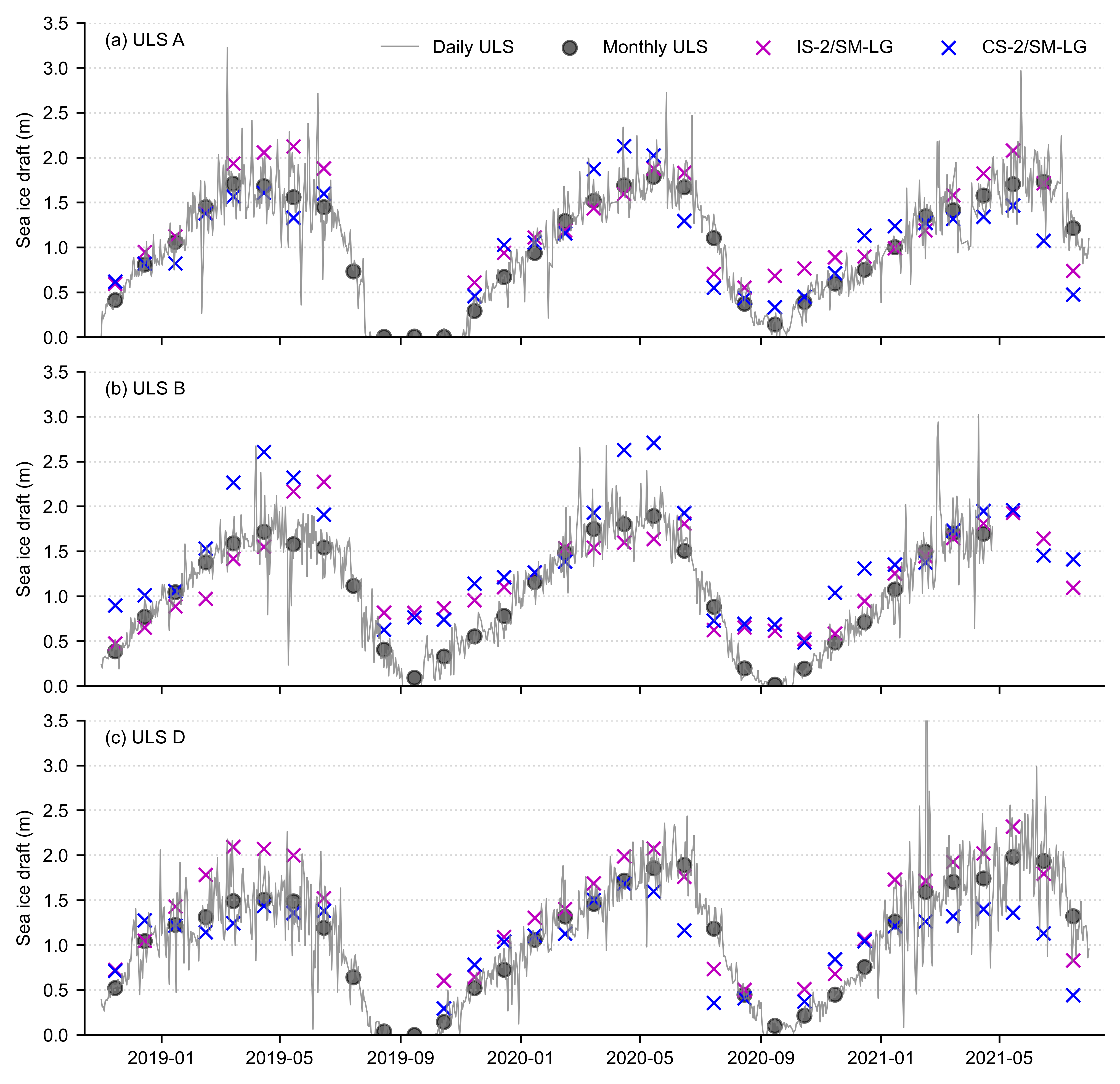

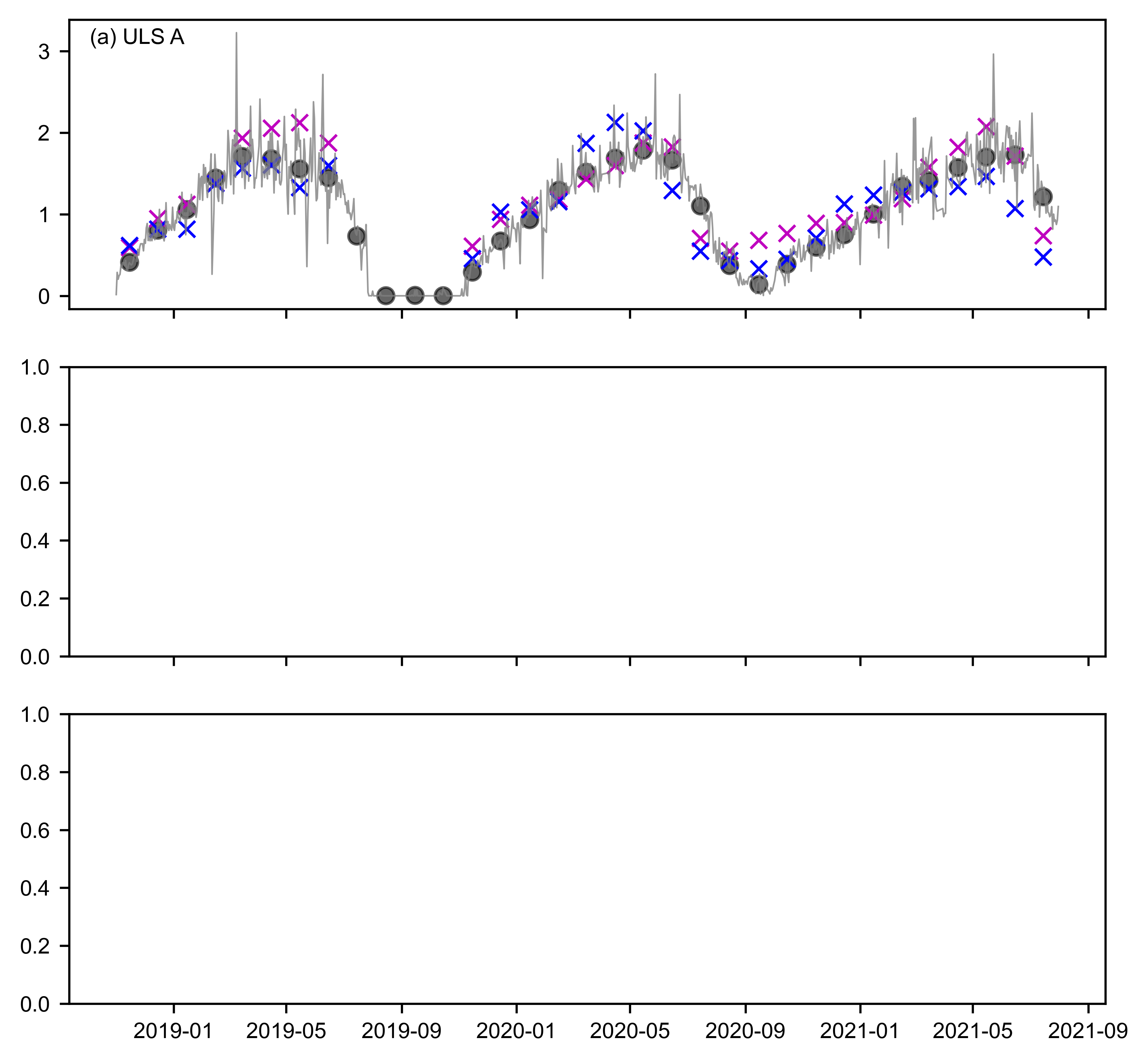

# Define a function to create plots for a given option
option_labels = ['IS2/SMLG-'+reanalysis.capitalize(), 'IS2/SMLG-'+reanalysis_two.capitalize(), 'CS2/SMLG-M2']
fig, axes = plt.subplots(3, 1, figsize=(6.8, 6.5), sharex=True)
# Plot for ULS A
axes[0].plot(uls_mean_daily_draft_a.index, uls_mean_daily_draft_a, label="Daily ULS", color='gray', linewidth=0.6, alpha=0.8)
axes[0].plot(uls_mean_monthly_draft_a.index.to_timestamp() + pd.Timedelta(days=14), uls_mean_monthly_draft_a, label="Monthly ULS", marker='o', markersize=5, linewidth=1, alpha=1, color='gray')
axes[0].scatter(IS2_date_range, monthly_IS2_at_ULS_a_options[option_labels[0]], label=option_labels[0], color='b', marker='o', alpha=0.8)
axes[0].scatter(IS2_date_range, monthly_IS2_at_ULS_a_options[option_labels[1]], label=option_labels[1], color='b', marker='^', alpha=0.8)
axes[0].scatter(IS2_date_range, monthly_IS2_at_ULS_a_options[option_labels[2]], label=option_labels[2], color='r', marker='o', alpha=0.8)
#axes[0].scatter(IS2_date_range, uls_mean_monthly_draft_a_IS2_period, label=option, color='m', marker='x')
axes[0].annotate('(a) ULS A', xy=(0.02, 0.97), xycoords='axes fraction', verticalalignment='top')
axes[0].legend(loc='upper right', ncols=4, frameon=False)
# Plot for ULS B
axes[1].plot(uls_mean_daily_draft_b.index, uls_mean_daily_draft_b, label="Daily ULS", color='gray', linewidth=0.6, alpha=0.8)
axes[1].plot(uls_mean_monthly_draft_b.index.to_timestamp() + pd.Timedelta(days=14), uls_mean_monthly_draft_b, label="Monthly ULS", marker='o', markersize=5, linewidth=1, alpha=1, color='gray')
axes[1].scatter(IS2_date_range, monthly_IS2_at_ULS_b_options[option_labels[0]], label=option_labels[0], color='b', marker='o', alpha=0.8)
axes[1].scatter(IS2_date_range, monthly_IS2_at_ULS_b_options[option_labels[1]], label=option_labels[1], color='b', marker='^', alpha=0.8)
axes[1].scatter(IS2_date_range, monthly_IS2_at_ULS_b_options[option_labels[2]], label=option_labels[2], color='r', marker='o', alpha=0.8)
#axes[1].scatter(uls_mean_monthly_draft_b.index.to_timestamp() + pd.Timedelta(days=14), uls_mean_monthly_draft_b, label=option, color='b', marker='x')
axes[1].annotate('(b) ULS B', xy=(0.02, 0.97), xycoords='axes fraction', verticalalignment='top')
# Plot for ULS D
axes[2].plot(uls_mean_daily_draft_d.index, uls_mean_daily_draft_d, label="Daily ULS", color='gray', linewidth=0.6, alpha=0.8)
axes[2].plot(uls_mean_monthly_draft_d.index.to_timestamp() + pd.Timedelta(days=14), uls_mean_monthly_draft_d, label="Monthly ULS", marker='o', markersize=5, linewidth=1, alpha=1, color='gray')
#axes[2].scatter(IS2_date_range, uls_mean_monthly_draft_d_IS2_period , label=option, color='m', marker='x')
axes[2].scatter(IS2_date_range, monthly_IS2_at_ULS_d_options[option_labels[0]], label=option_labels[0], color='b', marker='o', alpha=0.8)
axes[2].scatter(IS2_date_range, monthly_IS2_at_ULS_d_options[option_labels[1]], label=option_labels[1], color='b', marker='^', alpha=0.8)
axes[2].scatter(IS2_date_range, monthly_IS2_at_ULS_d_options[option_labels[2]], label=option_labels[2], color='r', marker='o', alpha=0.8)
axes[2].annotate('(c) ULS D', xy=(0.02, 0.97), xycoords='axes fraction', verticalalignment='top')
axes[2].set_ylabel('Sea ice draft (m)')
for ax in axes:
# Remove top and right spines
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
# Add horizontal gridlines
ax.grid(axis='y', linestyle=':', alpha=0.5)
ax.set_ylim([0, 3.5])
ax.set_ylabel('Sea ice draft (m)')
ax.set_xlim([pd.Timestamp('2018-10-15'), pd.Timestamp('2021-08-15')])
plt.subplots_adjust(left=0.065, right=0.97, top=0.98, bottom=0.04, hspace=0.11) # Adjust these values to reduce whitespace
plt.savefig('./figs/BGEP_allseason_res'+str(comp_res)+'_nn_'+start_date+end_date+int_str+'_inccs2_'+reanalysis+'-'+reanalysis_two+'_v2.pdf', dpi=300)
plt.show()

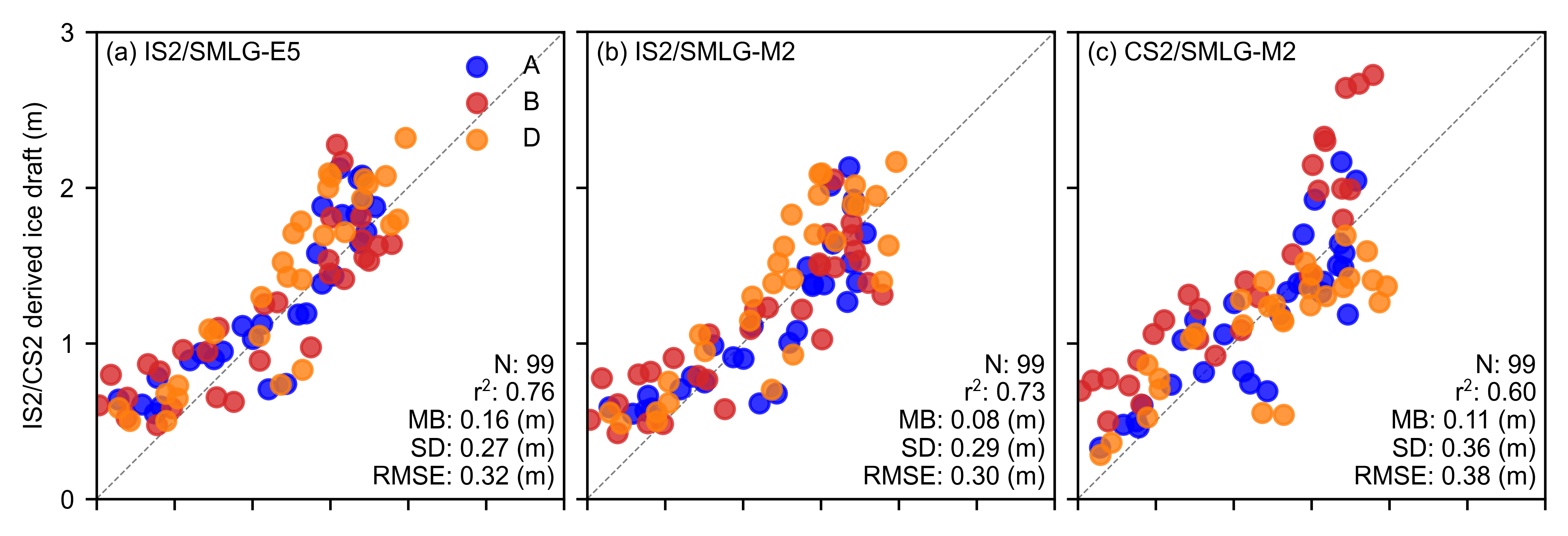

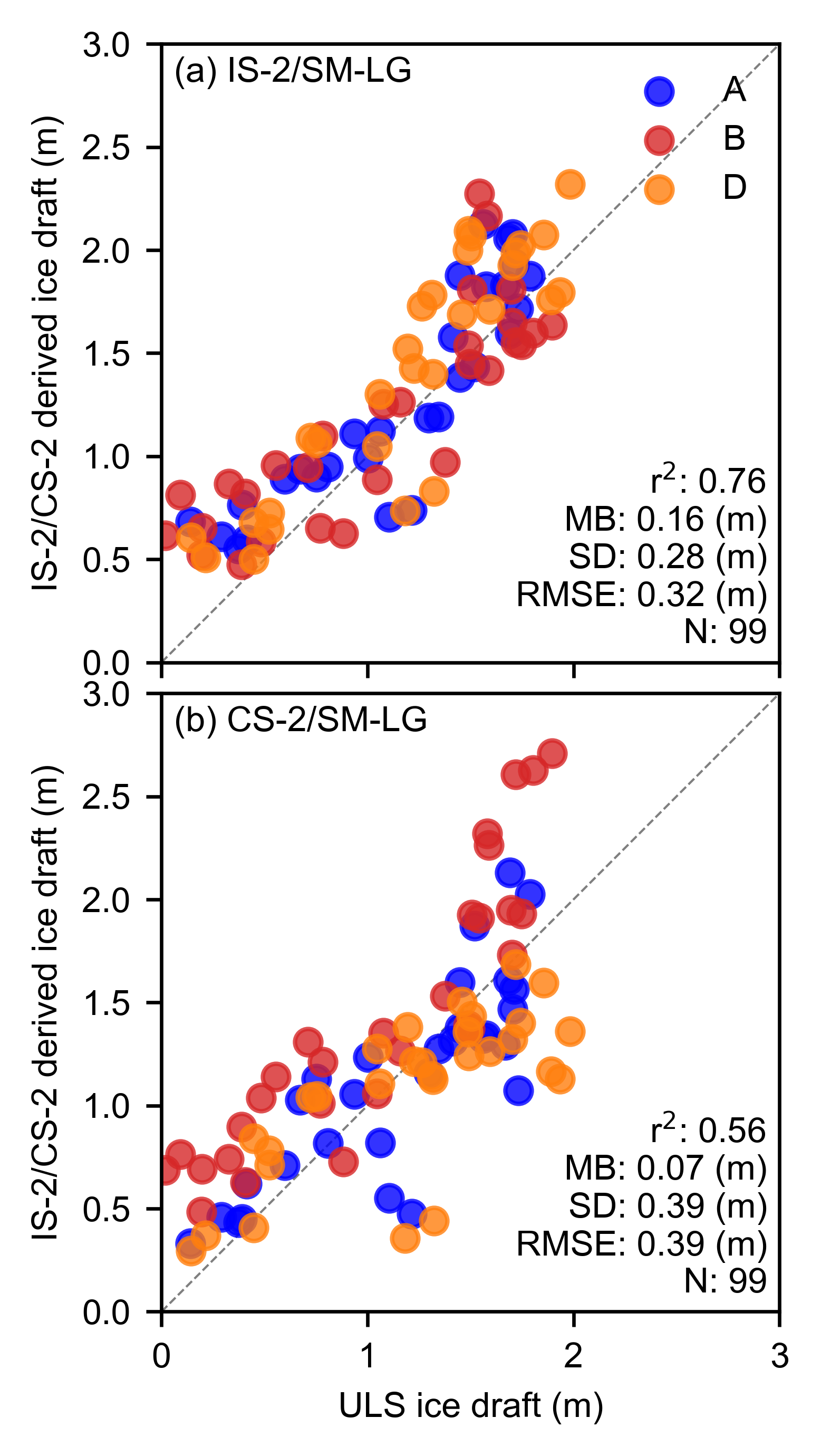

# Create a single column with two rows for the two options
fig, axes = plt.subplots(1, 3, figsize=(6.8, 2.3), gridspec_kw={'wspace': 0.05}) # Adjust hspace for less whitespace
axes = axes.flatten() # Flatten the 2D array of axes for easy iteration
panel_labels = ['(a)', '(b)', '(c)'] # Panel labels
# Iterate over the first two options
for i, option in enumerate(list(options.keys())[:3]):
ax = axes[i]
ax.scatter(uls_mean_monthly_draft_a_IS2_period, monthly_IS2_at_ULS_a_options[option], color='b', alpha=0.8, label='A')
ax.scatter(uls_mean_monthly_draft_b_IS2_period, monthly_IS2_at_ULS_b_options[option], color='tab:red', alpha=0.8, label='B')
ax.scatter(uls_mean_monthly_draft_d_IS2_period, monthly_IS2_at_ULS_d_options[option], color='tab:orange', alpha=0.8, label='D')
# Retrieve validation results for the current option
r_str_all = validation_results[option]['r_str_all']
mb_str_all = validation_results[option]['mb_str_all']
sd_str_all = validation_results[option]['sd_str_all']
rmse_all = np.sqrt(np.nanmean((np.array(monthly_IS2_at_ULS_all_options[option]) - np.array(uls_mean_monthly_draft_IS2_period))**2))
n_str = str(len(monthly_IS2_at_ULS_all_options[option]))
# Annotate the plot with RMSE, mean bias, and standard deviation
ax.annotate(f"N: {n_str}\nr$^2$: {r_str_all}\nMB: {mb_str_all} (m)\nSD: {sd_str_all} (m)\nRMSE: {rmse_all:.02f} (m)", color='k', xy=(0.98, 0.02), xycoords='axes fraction', horizontalalignment='right', verticalalignment='bottom')
# Combine panel label with option label
ax.annotate(f"{panel_labels[i]} "+option, xy=(0.02, 0.98), xycoords='axes fraction', horizontalalignment='left', verticalalignment='top')
# Set x and y labels only for the leftmost and bottom plots
if i == 0:
ax.legend(frameon=False, loc="upper right")
ax.set_ylabel('IS2/CS2 derived ice draft (m)')
else:
ax.set_yticklabels('')
ax.set_xticklabels('')
ax.set_xlabel('')
ax.set_xlim([0, 3])
ax.set_ylim([0, 3])
ax.set_yticks([0, 1, 2, 3])
lims = [
np.min([ax.get_xlim(), ax.get_ylim()]), # min of both axes
np.max([ax.get_xlim(), ax.get_ylim()]), # max of both axes
]
ax.plot(lims, lims, 'k--', linewidth=0.5, alpha=0.5, zorder=0)
ax.set_aspect('equal')
plt.subplots_adjust(left=0.05, right=0.98, top=0.99, bottom=0.01) # Adjust these values to reduce whitespace
plt.savefig('./figs/BGEP_allseason_scatter_res'+str(comp_res)+'_nn_'+start_date+end_date+int_str+'_inccs2_'+reanalysis+'v3.pdf', dpi=300)
plt.show()

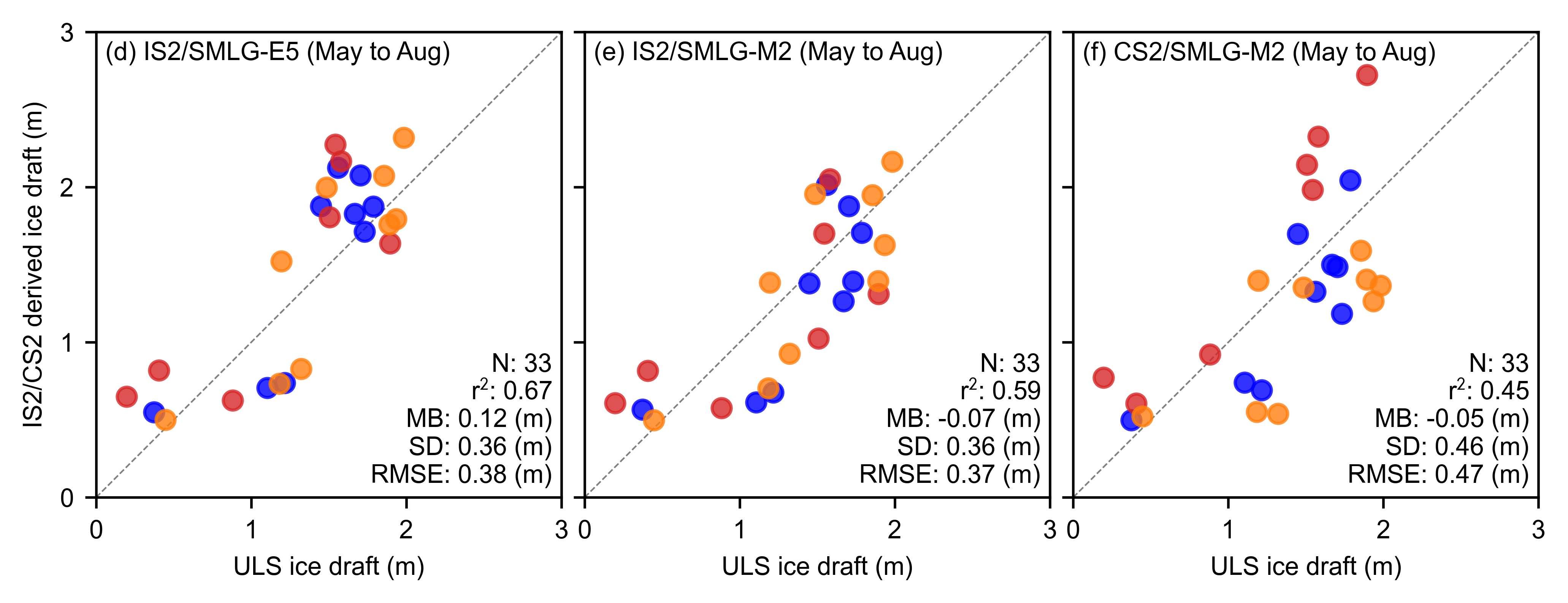

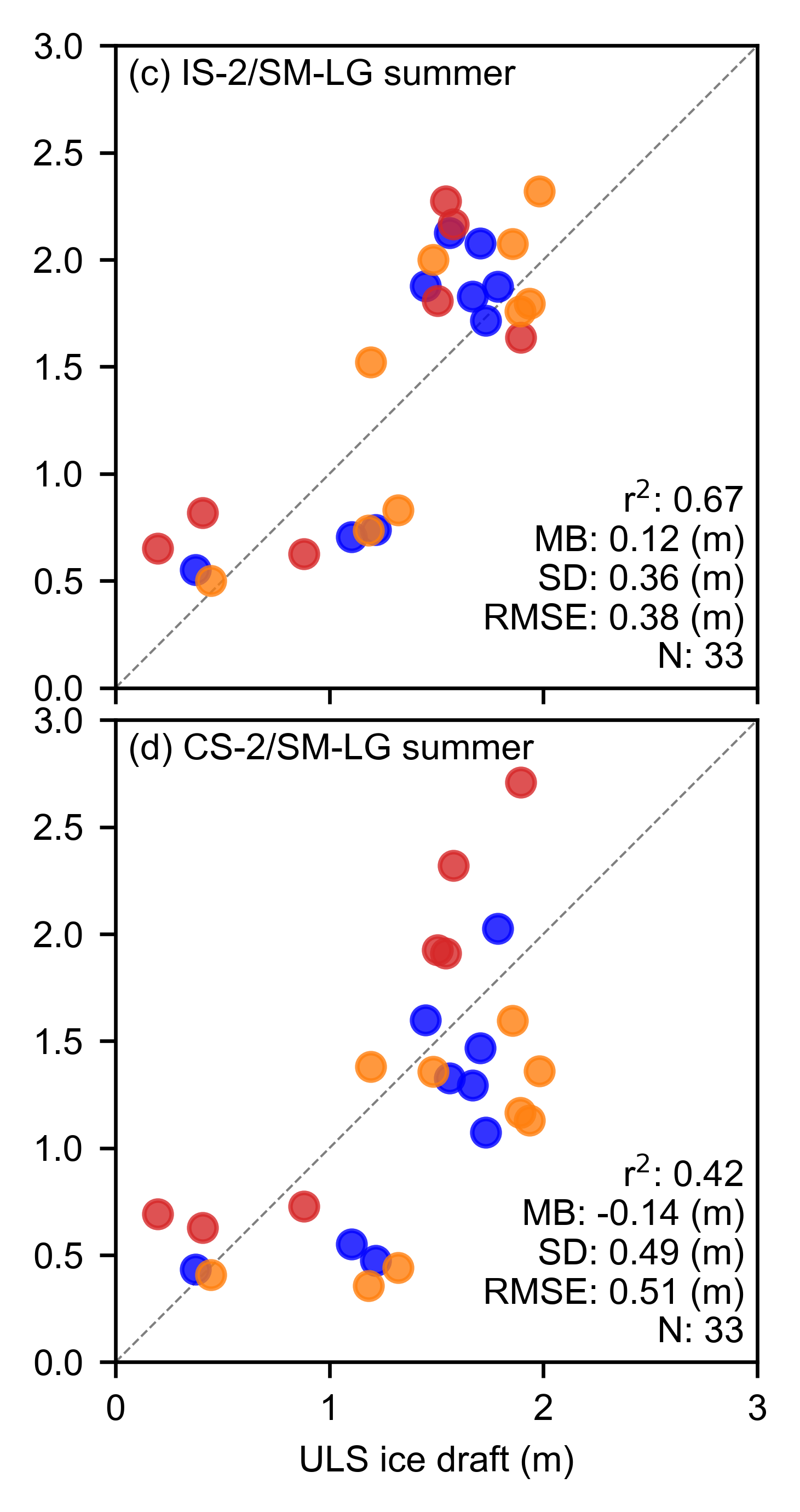

OK now just do summer month (May to August) comparisons!#
# Filter for summer months (May=5 through August=8)
IS2_date_range = IS2_date_range[IS2_date_range.month.isin([5, 6, 7, 8])]
# Create date strings for filtered range
IS2_date_range_strs = [str(date.year)+'-%02d'%(date.month) for date in IS2_date_range]
print("Summer dates:", IS2_date_range_strs)
Summer dates: ['2019-05', '2019-06', '2019-07', '2019-08', '2020-05', '2020-06', '2020-07', '2020-08', '2021-05', '2021-06', '2021-07']
# Repeat functions from above (should really streamline this more)
# Compute monthly ULS values for each option
monthly_IS2_at_ULS_a_options = {}
monthly_IS2_at_ULS_b_options = {}
monthly_IS2_at_ULS_d_options = {}
monthly_IS2_at_ULS_all_options = {}
for option in options.keys():
monthly_IS2_at_ULS_a_options[option] = [
grid_IS2_nearby(date, option, uls_x_a, uls_y_a, res=comp_res) for date in IS2_date_range
]
monthly_IS2_at_ULS_b_options[option] = [
grid_IS2_nearby(date, option,uls_x_b, uls_y_b, res=comp_res) for date in IS2_date_range
]
monthly_IS2_at_ULS_d_options[option] = [
grid_IS2_nearby(date, option,uls_x_d, uls_y_d, res=comp_res) for date in IS2_date_range
]
# Combine all ULS values for the current option
monthly_IS2_at_ULS_all_options[option] = (
monthly_IS2_at_ULS_a_options[option] +
monthly_IS2_at_ULS_b_options[option] +
monthly_IS2_at_ULS_d_options[option]
)
2019-05-15 00:00:00 IS2/SMLG-E5 2.1249423
2019-06-15 00:00:00 IS2/SMLG-E5 1.8776155
2019-07-15 00:00:00 IS2/SMLG-E5 nan
2019-08-15 00:00:00 IS2/SMLG-E5 nan
2020-05-15 00:00:00 IS2/SMLG-E5 1.8750578
2020-06-15 00:00:00 IS2/SMLG-E5 1.8289809
2020-07-15 00:00:00 IS2/SMLG-E5 0.70578855
2020-08-15 00:00:00 IS2/SMLG-E5 0.55099994
2021-05-15 00:00:00 IS2/SMLG-E5 2.0777307
2021-06-15 00:00:00 IS2/SMLG-E5 1.71525
2021-07-15 00:00:00 IS2/SMLG-E5 0.7386345
2019-05-15 00:00:00 IS2/SMLG-E5 2.16676
2019-06-15 00:00:00 IS2/SMLG-E5 2.27472
2019-07-15 00:00:00 IS2/SMLG-E5 nan
2019-08-15 00:00:00 IS2/SMLG-E5 0.81884444
2020-05-15 00:00:00 IS2/SMLG-E5 1.6374398
2020-06-15 00:00:00 IS2/SMLG-E5 1.8070999
2020-07-15 00:00:00 IS2/SMLG-E5 0.62468004
2020-08-15 00:00:00 IS2/SMLG-E5 0.651
2021-05-15 00:00:00 IS2/SMLG-E5 1.9285
2021-06-15 00:00:00 IS2/SMLG-E5 1.64134
2021-07-15 00:00:00 IS2/SMLG-E5 1.0927
2019-05-15 00:00:00 IS2/SMLG-E5 1.99894
2019-06-15 00:00:00 IS2/SMLG-E5 1.5218371
2019-07-15 00:00:00 IS2/SMLG-E5 nan
2019-08-15 00:00:00 IS2/SMLG-E5 nan
2020-05-15 00:00:00 IS2/SMLG-E5 2.07406
2020-06-15 00:00:00 IS2/SMLG-E5 1.76022
2020-07-15 00:00:00 IS2/SMLG-E5 0.73486006
2020-08-15 00:00:00 IS2/SMLG-E5 0.50064105
2021-05-15 00:00:00 IS2/SMLG-E5 2.32064
2021-06-15 00:00:00 IS2/SMLG-E5 1.7958002
2021-07-15 00:00:00 IS2/SMLG-E5 0.82938004
2019-05-15 00:00:00 IS2/SMLG-M2 2.0145383
2019-06-15 00:00:00 IS2/SMLG-M2 1.3804231
2019-07-15 00:00:00 IS2/SMLG-M2 nan
2019-08-15 00:00:00 IS2/SMLG-M2 nan
2020-05-15 00:00:00 IS2/SMLG-M2 1.7076347
2020-06-15 00:00:00 IS2/SMLG-M2 1.2663846
2020-07-15 00:00:00 IS2/SMLG-M2 0.6146731
2020-08-15 00:00:00 IS2/SMLG-M2 0.5667778
2021-05-15 00:00:00 IS2/SMLG-M2 1.8792884
2021-06-15 00:00:00 IS2/SMLG-M2 1.3924807
2021-07-15 00:00:00 IS2/SMLG-M2 0.6779999
2019-05-15 00:00:00 IS2/SMLG-M2 2.0525
2019-06-15 00:00:00 IS2/SMLG-M2 1.70138
2019-07-15 00:00:00 IS2/SMLG-M2 nan
2019-08-15 00:00:00 IS2/SMLG-M2 0.81720006
2020-05-15 00:00:00 IS2/SMLG-M2 1.3124601
2020-06-15 00:00:00 IS2/SMLG-M2 1.0246
2020-07-15 00:00:00 IS2/SMLG-M2 0.57628
2020-08-15 00:00:00 IS2/SMLG-M2 0.60800004
2021-05-15 00:00:00 IS2/SMLG-M2 1.7695199
2021-06-15 00:00:00 IS2/SMLG-M2 1.2318
2021-07-15 00:00:00 IS2/SMLG-M2 0.73498
2019-05-15 00:00:00 IS2/SMLG-M2 1.9558799
2019-06-15 00:00:00 IS2/SMLG-M2 1.3864883
2019-07-15 00:00:00 IS2/SMLG-M2 nan
2019-08-15 00:00:00 IS2/SMLG-M2 nan
2020-05-15 00:00:00 IS2/SMLG-M2 1.9481399
2020-06-15 00:00:00 IS2/SMLG-M2 1.3949798
2020-07-15 00:00:00 IS2/SMLG-M2 0.70324004
2020-08-15 00:00:00 IS2/SMLG-M2 0.498359
2021-05-15 00:00:00 IS2/SMLG-M2 2.1650999
2021-06-15 00:00:00 IS2/SMLG-M2 1.6275799
2021-07-15 00:00:00 IS2/SMLG-M2 0.92748
2019-05-15 00:00:00 CS2/SMLG-M2 1.32761573572704
2019-06-15 00:00:00 CS2/SMLG-M2 1.7003042666719357
2019-07-15 00:00:00 CS2/SMLG-M2 nan
2019-08-15 00:00:00 CS2/SMLG-M2 nan
2020-05-15 00:00:00 CS2/SMLG-M2 2.044249189875285
2020-06-15 00:00:00 CS2/SMLG-M2 1.5002631096173984
2020-07-15 00:00:00 CS2/SMLG-M2 0.741398082861264
2020-08-15 00:00:00 CS2/SMLG-M2 0.4980433208030213
2021-05-15 00:00:00 CS2/SMLG-M2 1.485933057266566
2021-06-15 00:00:00 CS2/SMLG-M2 1.1857245496700957
2021-07-15 00:00:00 CS2/SMLG-M2 0.6922791350711676
2019-05-15 00:00:00 CS2/SMLG-M2 2.3272748774766425
2019-06-15 00:00:00 CS2/SMLG-M2 1.982525247734178
2019-07-15 00:00:00 CS2/SMLG-M2 nan
2019-08-15 00:00:00 CS2/SMLG-M2 0.6069288799142842
2020-05-15 00:00:00 CS2/SMLG-M2 2.724749518152022
2020-06-15 00:00:00 CS2/SMLG-M2 2.1451169637475433
2020-07-15 00:00:00 CS2/SMLG-M2 0.9211726258119474
2020-08-15 00:00:00 CS2/SMLG-M2 0.7728285254906487
2021-05-15 00:00:00 CS2/SMLG-M2 1.976713356655778
2021-06-15 00:00:00 CS2/SMLG-M2 1.674475880176959
2021-07-15 00:00:00 CS2/SMLG-M2 1.694108700943081
2019-05-15 00:00:00 CS2/SMLG-M2 1.353567757986005
2019-06-15 00:00:00 CS2/SMLG-M2 1.3976132189098807
2019-07-15 00:00:00 CS2/SMLG-M2 nan
2019-08-15 00:00:00 CS2/SMLG-M2 nan
2020-05-15 00:00:00 CS2/SMLG-M2 1.5910504115331505
2020-06-15 00:00:00 CS2/SMLG-M2 1.4056480181975148
2020-07-15 00:00:00 CS2/SMLG-M2 0.5528738459595642
2020-08-15 00:00:00 CS2/SMLG-M2 0.5237700486186677
2021-05-15 00:00:00 CS2/SMLG-M2 1.3658561715339803
2021-06-15 00:00:00 CS2/SMLG-M2 1.2646598346397024
2021-07-15 00:00:00 CS2/SMLG-M2 0.5397154018492917
uls_dates=uls_mean_monthly_draft_a.index.astype(str)
uls_mean_monthly_draft_a_IS2_period = [get_ULS_dates(uls_mean_monthly_draft_a, uls_dates, date) for date in IS2_date_range_strs]
uls_dates=uls_mean_monthly_draft_b.index.astype(str)
uls_mean_monthly_draft_b_IS2_period = [get_ULS_dates(uls_mean_monthly_draft_b, uls_dates, date) for date in IS2_date_range_strs]
uls_dates=uls_mean_monthly_draft_d.index.astype(str)
uls_mean_monthly_draft_d_IS2_period = [get_ULS_dates(uls_mean_monthly_draft_d, uls_dates, date) for date in IS2_date_range_strs]
uls_mean_monthly_draft_IS2_period = uls_mean_monthly_draft_a_IS2_period+uls_mean_monthly_draft_b_IS2_period+uls_mean_monthly_draft_d_IS2_period
# Validation analysis for each option
validation_results = {}
for option in options.keys():
print(option)
# ULS A
mask_a = ~np.isnan(monthly_IS2_at_ULS_a_options[option])& ~np.isnan(uls_mean_monthly_draft_a_IS2_period)
res_a = stats.linregress(
np.array(monthly_IS2_at_ULS_a_options[option])[mask_a],
np.array(uls_mean_monthly_draft_a_IS2_period)[mask_a]
)
r_str_a = '%.02f' % (res_a[2]**2)
mb_str_a = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_a_options[option]) - np.array(uls_mean_monthly_draft_a_IS2_period)))
sd_str_a = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_a_options[option]) - np.array(uls_mean_monthly_draft_a_IS2_period)))
# ULS B
mask_b = ~np.isnan(monthly_IS2_at_ULS_b_options[option])& ~np.isnan(uls_mean_monthly_draft_b_IS2_period)
res_b = stats.linregress(
np.array(monthly_IS2_at_ULS_b_options[option])[mask_b],
np.array(uls_mean_monthly_draft_b_IS2_period)[mask_b]
)
r_str_b = '%.02f' % (res_b[2]**2)
mb_str_b = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_b_options[option]) - np.array(uls_mean_monthly_draft_b_IS2_period)))
sd_str_b = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_b_options[option]) - np.array(uls_mean_monthly_draft_b_IS2_period)))
# ULS D
mask_d = ~np.isnan(monthly_IS2_at_ULS_d_options[option])& ~np.isnan(uls_mean_monthly_draft_b_IS2_period)
res_d = stats.linregress(
np.array(monthly_IS2_at_ULS_d_options[option])[mask_d],
np.array(uls_mean_monthly_draft_d_IS2_period)[mask_d]
)
r_str_d = '%.02f' % (res_d[2]**2)
mb_str_d = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_d_options[option]) - np.array(uls_mean_monthly_draft_d_IS2_period)))
sd_str_d = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_d_options[option]) - np.array(uls_mean_monthly_draft_d_IS2_period)))
# ULS ALL
mask_all = ~np.isnan(monthly_IS2_at_ULS_all_options[option])& ~np.isnan(uls_mean_monthly_draft_IS2_period)
res_all = stats.linregress(
np.array(monthly_IS2_at_ULS_all_options[option])[mask_all],
np.array(uls_mean_monthly_draft_IS2_period)[mask_all]
)
r_str_all = '%.02f' % (res_all[2]**2)
mb_str_all = '%.02f' % (np.nanmean(np.array(monthly_IS2_at_ULS_all_options[option]) - np.array(uls_mean_monthly_draft_IS2_period)))
sd_str_all = '%.02f' % (np.nanstd(np.array(monthly_IS2_at_ULS_all_options[option]) - np.array(uls_mean_monthly_draft_IS2_period)))
# Store results
validation_results[option] = {
'r_str_a': r_str_a, 'mb_str_a': mb_str_a, 'sd_str_a': sd_str_a,
'r_str_b': r_str_b, 'mb_str_b': mb_str_b, 'sd_str_b': sd_str_b,
'r_str_d': r_str_d, 'mb_str_d': mb_str_d, 'sd_str_d': sd_str_d,
'r_str_all': r_str_all, 'mb_str_all': mb_str_all, 'sd_str_all': sd_str_all
}
validation_results
IS2/SMLG-E5
IS2/SMLG-M2
CS2/SMLG-M2
{'IS2/SMLG-E5': {'r_str_a': '0.71',
'mb_str_a': '0.10',
'sd_str_a': '0.33',
'r_str_b': '0.70',
'mb_str_b': '0.28',
'sd_str_b': '0.36',
'r_str_d': '0.73',
'mb_str_d': '0.03',
'sd_str_d': '0.33',
'r_str_all': '0.67',
'mb_str_all': '0.12',
'sd_str_all': '0.36'},
'IS2/SMLG-M2': {'r_str_a': '0.61',
'mb_str_a': '-0.12',
'sd_str_a': '0.33',
'r_str_b': '0.53',
'mb_str_b': '0.01',
'sd_str_b': '0.42',
'r_str_d': '0.61',
'mb_str_d': '-0.08',
'sd_str_d': '0.33',
'r_str_all': '0.59',
'mb_str_all': '-0.07',
'sd_str_all': '0.36'},
'CS2/SMLG-M2': {'r_str_a': '0.65',
'mb_str_a': '-0.16',
'sd_str_a': '0.29',
'r_str_b': '0.92',
'mb_str_b': '0.50',
'sd_str_b': '0.27',
'r_str_d': '0.65',
'mb_str_d': '-0.37',
'sd_str_d': '0.33',
'r_str_all': '0.45',
'mb_str_all': '-0.05',
'sd_str_all': '0.46'}}
# Create a single column with two rows for the two options
fig, axes = plt.subplots(1, 3, figsize=(6.8, 2.5), gridspec_kw={'wspace': 0.05}) # Adjust hspace for less whitespace
axes = axes.flatten() # Flatten the 2D array of axes for easy iteration
panel_labels = ['(d)', '(e)', '(f)'] # Panel labels
# Iterate over the first two options
for i, option in enumerate(list(options.keys())[:3]):
ax = axes[i]
ax.scatter(uls_mean_monthly_draft_a_IS2_period, monthly_IS2_at_ULS_a_options[option], color='b', alpha=0.8, label='A')
ax.scatter(uls_mean_monthly_draft_b_IS2_period, monthly_IS2_at_ULS_b_options[option], color='tab:red', alpha=0.8, label='B')
ax.scatter(uls_mean_monthly_draft_d_IS2_period, monthly_IS2_at_ULS_d_options[option], color='tab:orange', alpha=0.8, label='D')
# Retrieve validation results for the current option
r_str_all = validation_results[option]['r_str_all']
mb_str_all = validation_results[option]['mb_str_all']
sd_str_all = validation_results[option]['sd_str_all']
rmse_all = np.sqrt(np.nanmean((np.array(monthly_IS2_at_ULS_all_options[option]) - np.array(uls_mean_monthly_draft_IS2_period))**2))
n_str = str(len(monthly_IS2_at_ULS_all_options[option]))
# Annotate the plot with RMSE, mean bias, and standard deviation
ax.annotate(f"N: {n_str}\nr$^2$: {r_str_all}\nMB: {mb_str_all} (m)\nSD: {sd_str_all} (m)\nRMSE: {rmse_all:.02f} (m)", color='k', xy=(0.98, 0.02), xycoords='axes fraction', horizontalalignment='right', verticalalignment='bottom')
# Combine panel label with option label
ax.annotate(f"{panel_labels[i]} "+option+' (May to Aug)', xy=(0.02, 0.98), xycoords='axes fraction', horizontalalignment='left', verticalalignment='top')
# Set x and y labels only for the leftmost and bottom plots
if i == 0:
#ax.legend(frameon=False, loc="upper right")
ax.set_ylabel('IS2/CS2 derived ice draft (m)')
else:
ax.set_yticklabels('')
ax.set_xlabel('ULS ice draft (m)')
#ax.set_ylabel('IS-2/CS-2 derived ice draft (m)')
ax.set_ylim([0, 3])
ax.set_yticks([0, 1, 2, 3])
ax.set_xlim([0, 3])
ax.set_xticks([0, 1, 2, 3])
lims = [
np.min([ax.get_xlim(), ax.get_ylim()]), # min of both axes
np.max([ax.get_xlim(), ax.get_ylim()]), # max of both axes
]
ax.plot(lims, lims, 'k--', linewidth=0.5, alpha=0.5, zorder=0)
ax.set_aspect('equal')
plt.subplots_adjust(left=0.05, right=0.98, top=0.99, bottom=0.11) # Adjust these values to reduce whitespace
plt.savefig('./figs/BGEP_summer_scatter_res'+str(comp_res)+'_nn_'+start_date+end_date+int_str+'_inccs2_'+reanalysis+'v3.pdf', dpi=300)
plt.show()
